What Are Zoo Windows? Purpose & Types [2025]

‍

If you’ve ever stood in front of a massive glass or acrylic panel, peering into the world of lions, polar bears, or underwater penguins, you’ve experienced a zoo window. But what exactly goes into making those windows not just safe, but visually stunning, durable, and animal-friendly?

In over three decades designing, engineering, and installing windows and viewing panels for zoo enclosures, I’ve learned that zoo windows are far more than aesthetic features. They are critical components of animal welfare, visitor experience, and operational safety.

By 2025, innovations in materials, engineering, glazing, coatings, and standards have raised the bar, and if you’re planning or maintaining zoo windows (especially acrylic zoo window systems or hybrid solutions), knowing the full landscape is non-negotiable.

In this article I’ll explain what zoo windows are, the purposes they serve (beyond just letting visitors see animals), the types of zoo windows (glass, acrylic, hybrids), how thickness and size vary by species, and what goes into designing, specifying, and installing a zoo window that lasts decades. These are insights you won’t get in a generic product brochure.

So let’s begin.

‍

TL;DR - Key Takeaways

‍

‍

• Zoo windows, whether made of laminated glass, clear acrylic, or hybrid materials, are engineered glazing panels in animal enclosures that balance safety, visual clarity, and animal welfare.
• They protect animals & visitors, reduce stress (reflections, noise, environmental control), allow for immersive viewing, and support maintenance.
• Types vary from thick laminated glass with safety interlayers, to cast acrylic panels (often curved), to hybrid glass-acrylic constructions; coatings (anti-reflective, bird-safe UV, acoustic) add functionality.
• Thickness & panel size must be matched to the species (behavior, strength, weight), the enclosure type (underwater view, land-only, mixed), and risk levels (visitor-animal impact).
• Acrylic zoo window systems often outperform glass for clarity, weight, and ability to support non-flat shapes; but glass still is better for scratch resistance and budget in some use-cases.
• If you want zoo windows built correctly (not just good enough), work with specialist zoo glass / zoo window / acrylic zoo window experts (such as Hammerhead Pools) who understand standards, engineering, material behavior, and the long-term cost.

‍

Now let’s get into the details.

‍

What Is a Zoo Window — And Why Not Regular Enclosures?

‍

‍

A zoo window is a viewing panel (window) in an animal habitat enclosure, made of glass, acrylic, or a hybrid, designed to allow safe visual access between animals and visitors, while maintaining strong barriers, environmental control, and animal welfare. It may be:

‍

• purely a viewing window (above ground or under water),


• part of a mixed media enclosure (glass + mesh + barriers), or


• an immersive or curved pane, walk-through tunnel, underwater wall, etc.



When I say “acrylic zoo window,” I typically refer to large, clear acrylic panels engineered for high loads or deep water, often used in aquatic habitats (aquariums, penguin pools, submerged portions of exhibits), or in large panoramic land mammal exhibits, where weight and clarity are big factors.

‍

Why Use Zoo Windows vs. Traditional Bars, Mesh, or Solid Walls

‍

‍

Zoo architecture used to be all bars, mesh, concrete walls. However, windows bring significant advantages:

‍

• Clear visibility for education & visitor satisfaction. People want to see animals up close without obstruction.


• Animal welfare involves less stress when reflections, predation cues, or visitor noise are managed correctly; more naturalistic habitat feeling with clearer views to outside or inside.


• Natural light / optics and learning about glass or acrylic permits much more daylight or well-controlled lighting than solid walls.


• Environment control will help you make better insulation, ability to manage humidity, temperature, noise, acoustics.


• Durability & safety with the right materials, zoo windows can resist animal impact, human interaction, water pressure, and endure years of use.



Traditional enclosures are cheaper and easier to build, but zoo windows are becoming standard in modern zoos for both animal and visitor experience, especially under heightened public expectations and regulatory/ethical standards.

‍

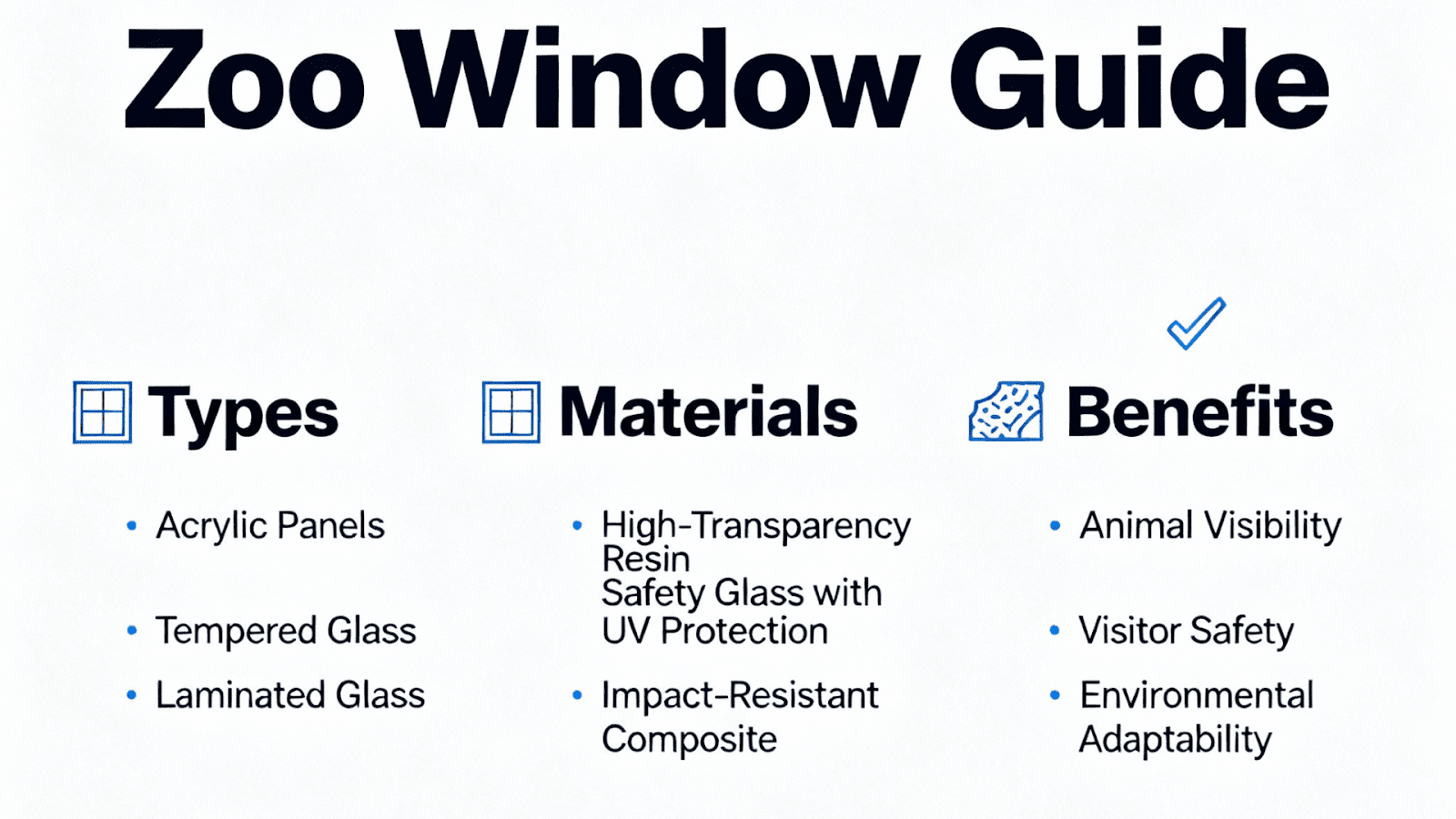

Different Types of Zoo Windows

‍

From what I have worked on and researched (dozens of large exhibits), here are the major types, their advantages/disadvantages, and when to use them.

‍

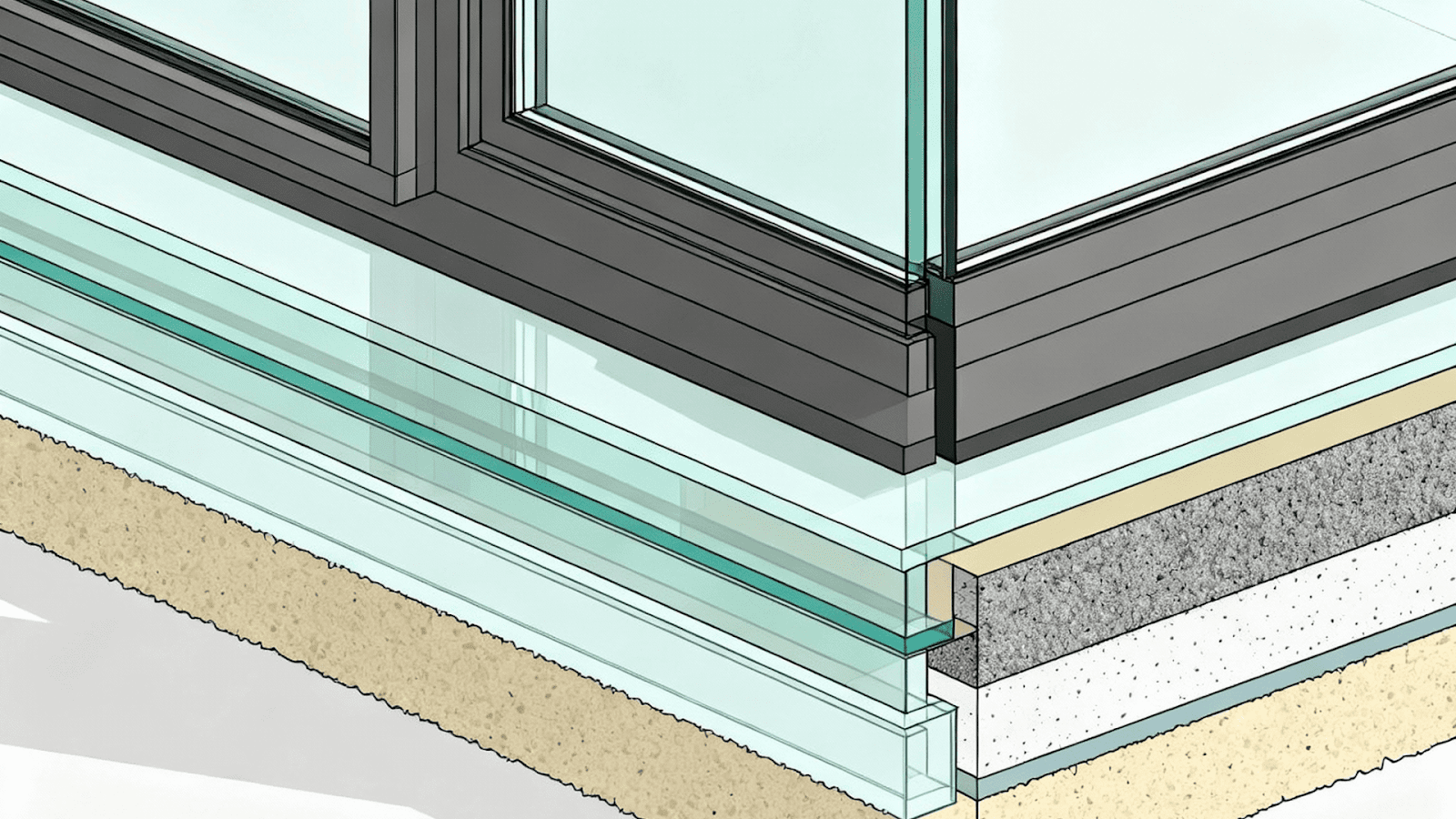

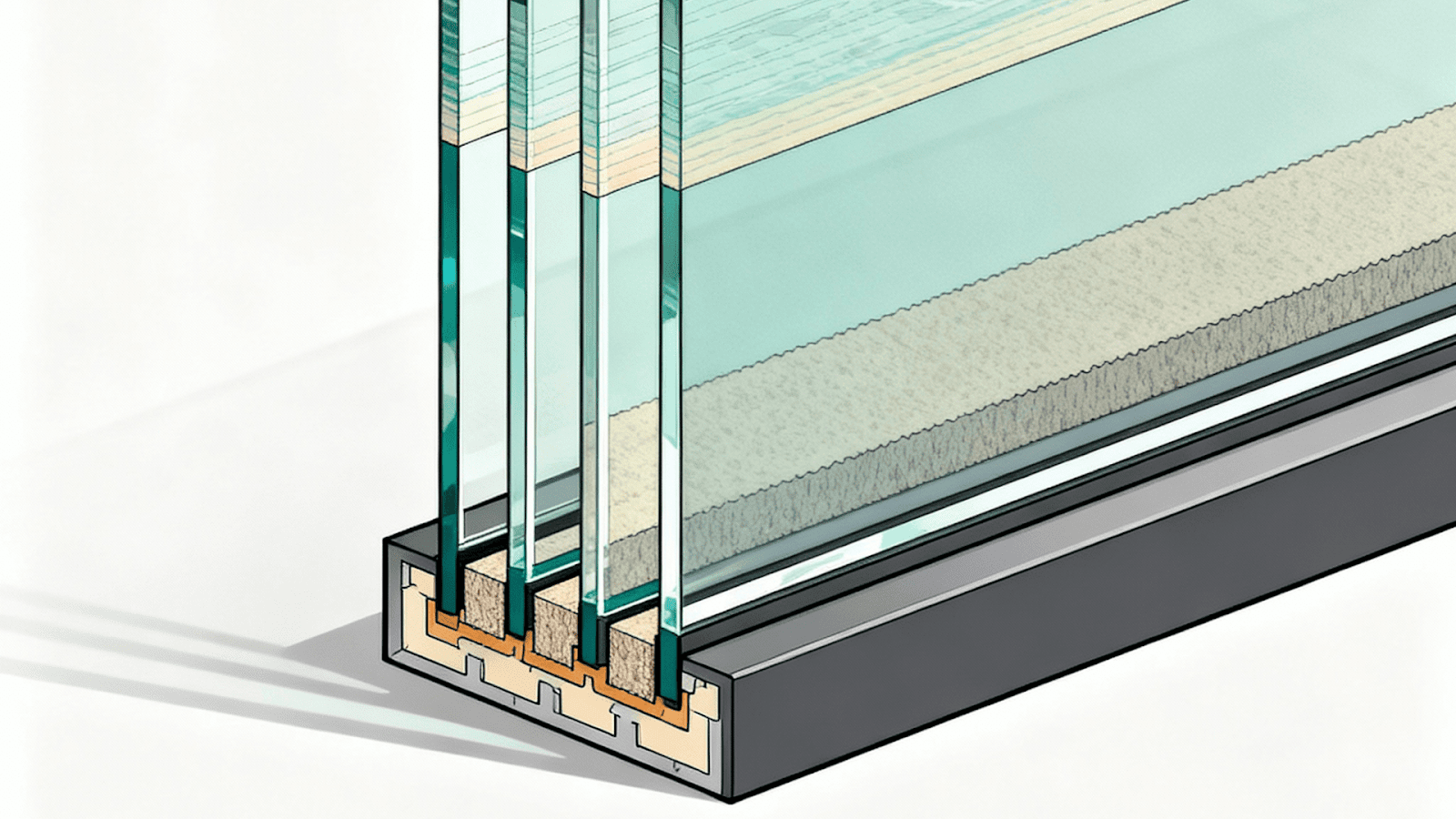

Laminated Safety Glass (Multi-layer)

‍

‍

• Consists of layers of glass with interlayers (PVB, SGP), sometimes with low-iron or anti-reflective coatings.


• Advantages: High scratch resistance, good durability, lower cost than acrylic for flat, smaller panels, and ideal for land animal enclosures where weight is manageable.


• Disadvantages: Heavier, more brittle, and prone to cracking under point loads; cost, weight, and handling become more complex for thick panels. It also has a visible green tint if low-iron is not used.


• Ideal Use-Cases: Large cat viewing panels, primate enclosures, visitor safety barriers, and above-ground viewing windows.

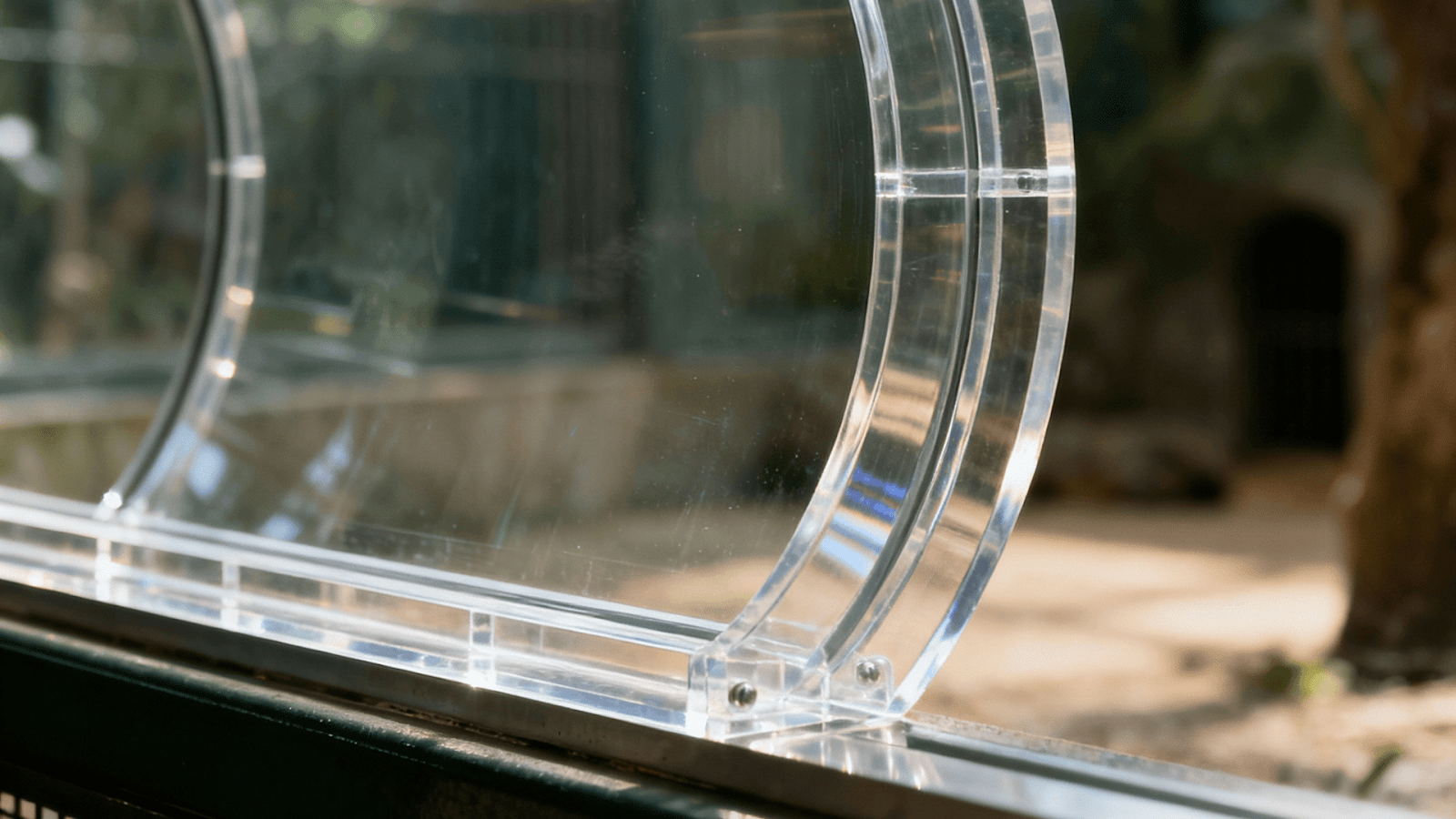

Cast Acrylic Panels

‍

‍

• Made from solid acrylic (PMMA), often UV-stabilized, and cast rather than extruded. It can be curved or chemically bonded.


• Advantages: Excellent clarity, lighter weight, better impact strength, can be molded into non-flat shapes, and is perfect for underwater viewing and large panoramic windows.


• Disadvantages: Susceptible to scratches, potential yellowing if low quality, and higher cost per mm of thickness. Requires careful maintenance and thermal expansion management.


• Ideal Use-Cases: Underwater views, tunnels, marine exhibits, large panoramic land animal windows, and mixed aquatic-terrestrial exhibits.



Hybrid Glass-Acrylic / Composite Windows

‍

‍

• These windows combine acrylic and glass layers or use acrylic facing with a glass backing. Sometimes they feature glass skins with an acrylic core or glass with acrylic parts in the waterline.


• Advantages: Aims to capture the best features of both materials, such as glass hardness and acrylic optics. They also optimize cost and performance by reducing the amount of acrylic needed.


• Disadvantages: More complex to engineer, with potential issues like differential expansion, bonding challenges, and a higher cost than pure glass. Repairs can also be more difficult.


• Ideal Use-Cases: Exhibits combining water and land where the lower portion needs acrylic and the upper portion glass; large installations where pure acrylic is too costly; and retrofits.

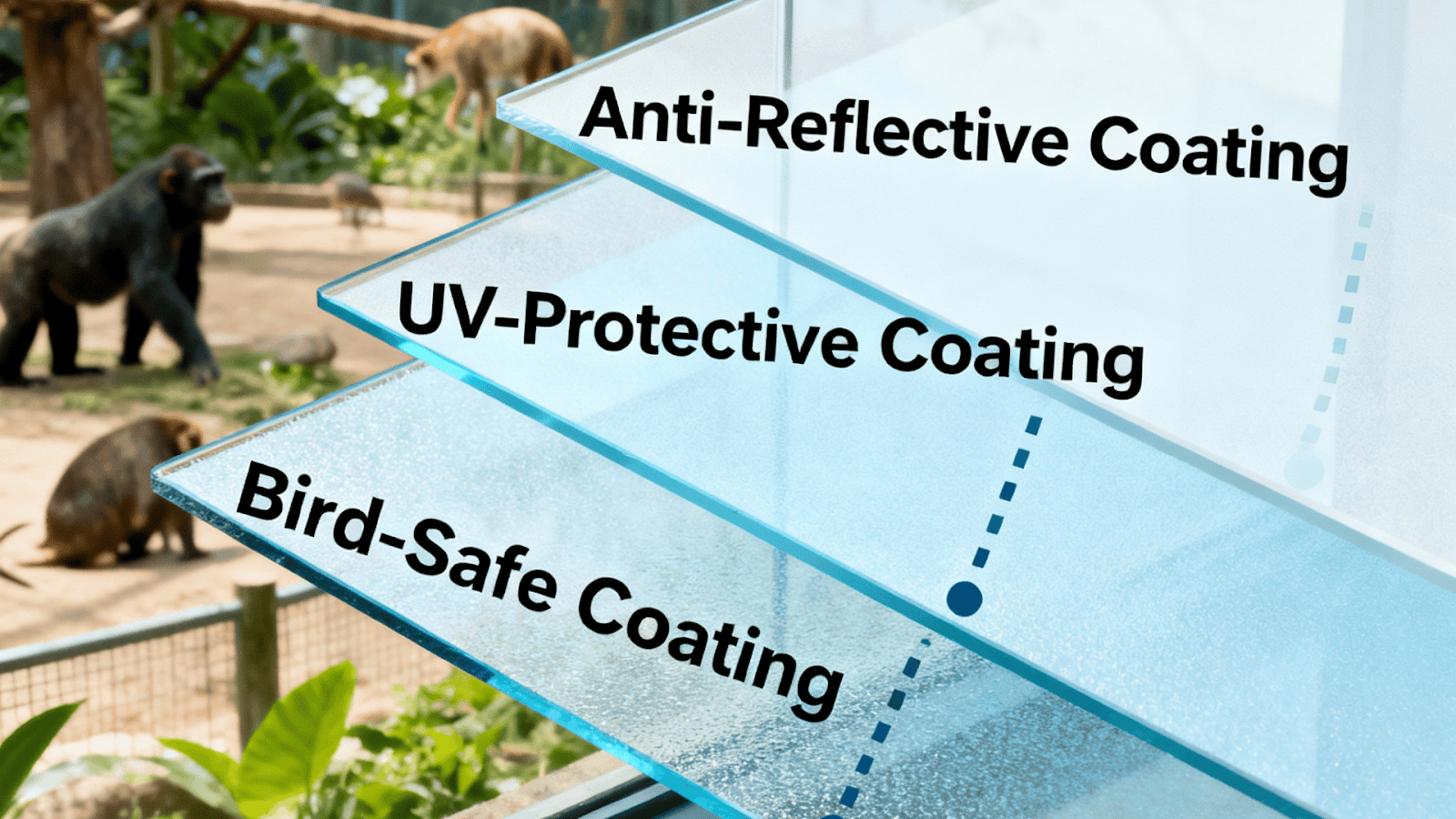

Specialized Coatings / Treatments

‍

‍

• Can be applied to either glass or acrylic and include anti-reflective, UV filtering, bird-safe patterning, acoustic dampening interlayers, and self-cleaning or hydrophilic coatings.


• Advantages: Addresses issues like animal aggression due to reflections, human glare, bird collisions, and noise control. Also reduces maintenance.


• Disadvantages: Increases cost, can degrade over time, may require reapplication, and might alter light transmission. Coatings can also be susceptible to scratching or damage.


• Ideal Use-Cases: Primates, big cats, sensitive species, bird exhibits, and noisy visitor areas.

‍

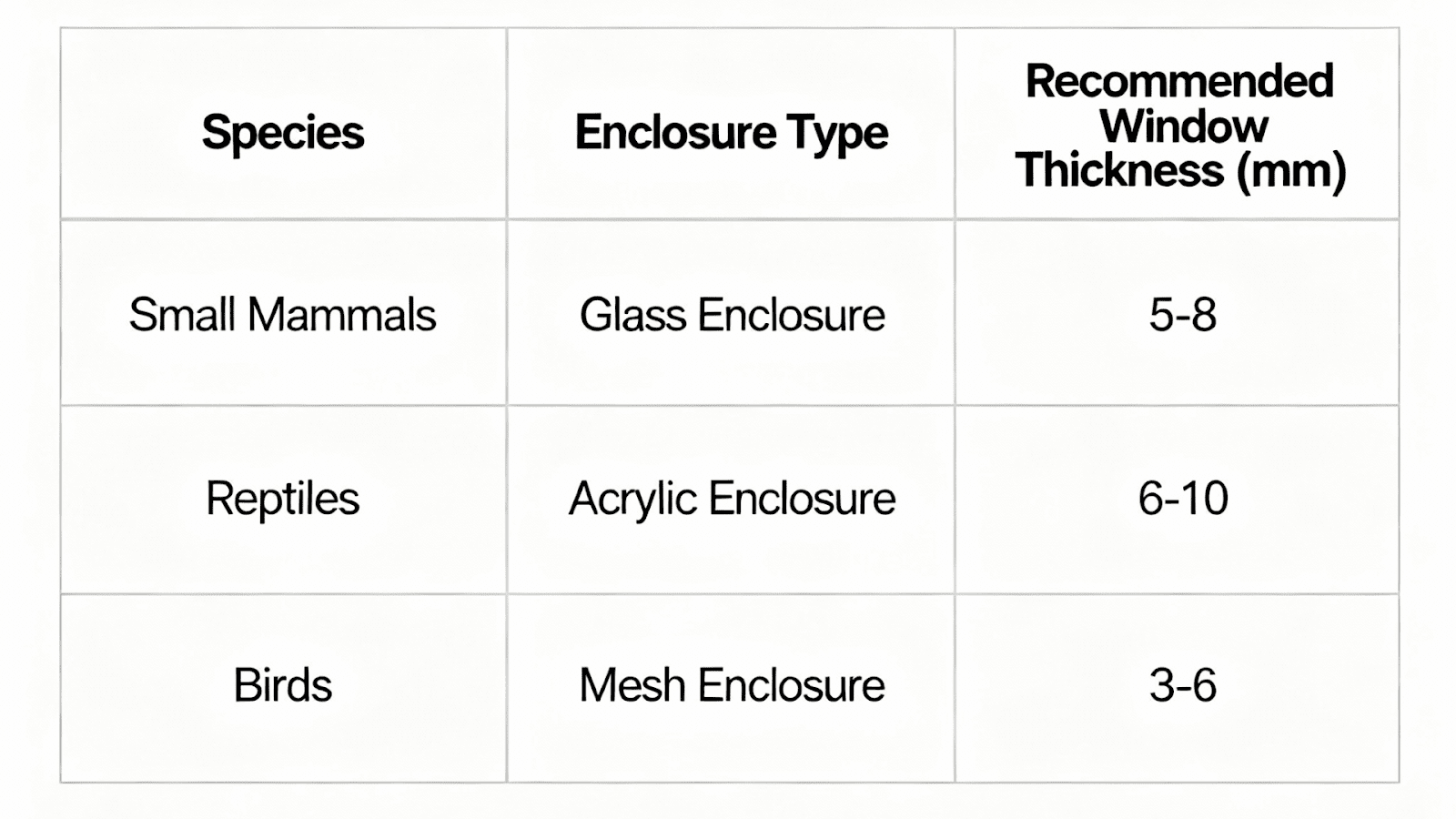

Thickness, Panel Size & Species Requirements

‍

‍

In zoo windows, the design of window length, height, area, and thickness isn’t arbitrary. It’s driven by:

‍

• the species (size, force, behavior)


• how the animals will interact (lekking, charges, swimming, rubbing, biting)


• whether part of the enclosure is submerged / underwater


• viewing distance (optical distortion, clarity)


• safety standards and local/national regulations



Here are some rules of thumb based on experience and published specs in the field (including recent data from zoo/glass specialists):

‍

Small Mammals, Non-predatory (e.g., small monkeys, civets)

‍

• Typical Panel Size & Shape: Flat panels, moderate sizes (1-2 m width, height 1.5-2 m).


• Recommended Material: Laminated glass or thinner acrylic.


• Approx. Minimum Thickness / Specs:



  • Glass: ~2 layers × 6-8 mm + interlayer.


  • Acrylic: ~25-40 mm depending on width.

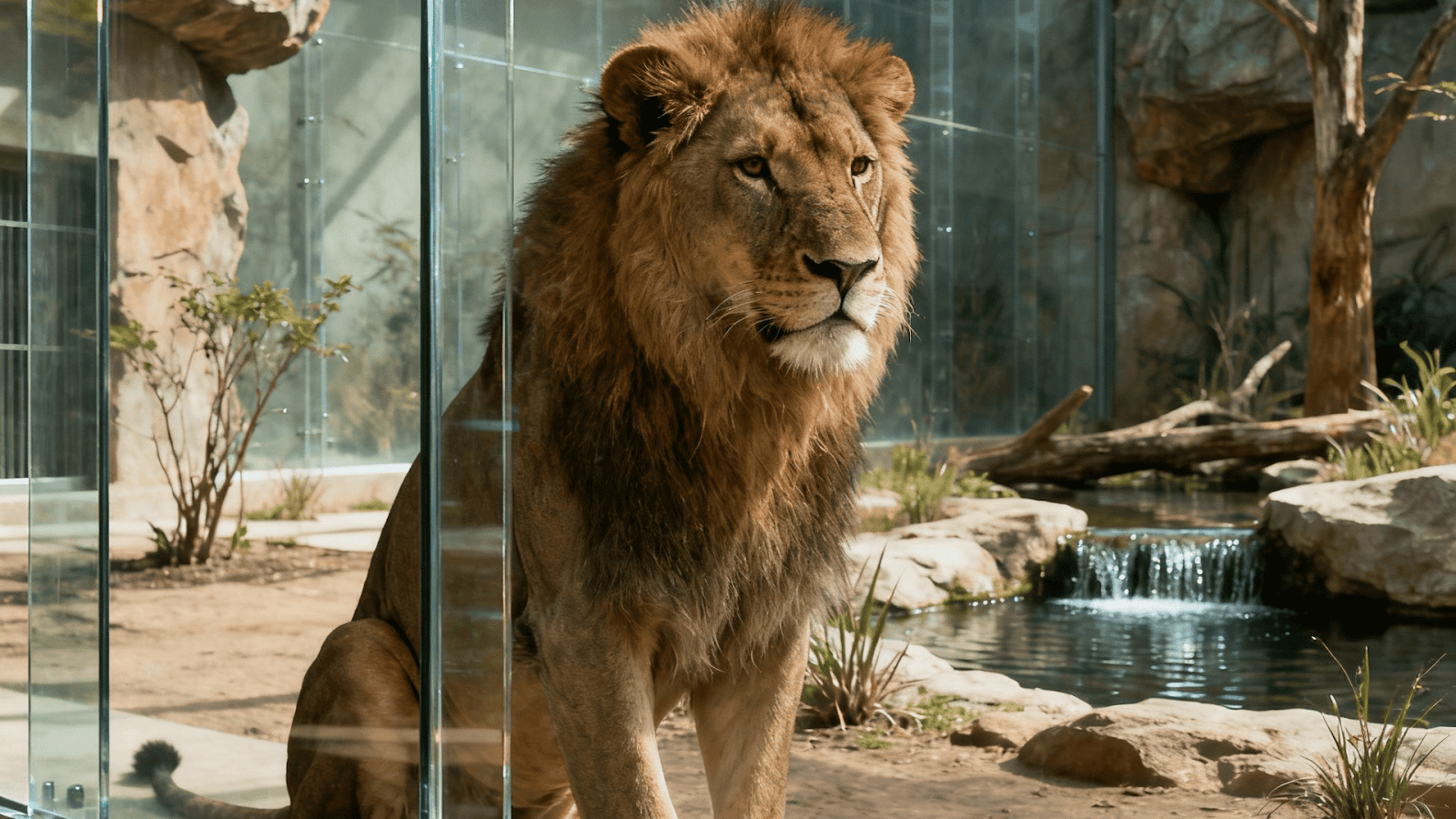

Big Cats (lion, tiger, jaguar)

‍

• Typical Panel Size & Shape: Larger panels may need protection for impacts, some above & underwater in mixed exhibits.


• Recommended Material: Laminated safety glass or thick acrylic if underwater.


• Approx. Minimum Thickness / Specs:



  • Glass: ~3 layers × 10-12 mm with PVB/SGP interlayers.


  • Acrylic: ~80-150 mm, especially for underwater sections.

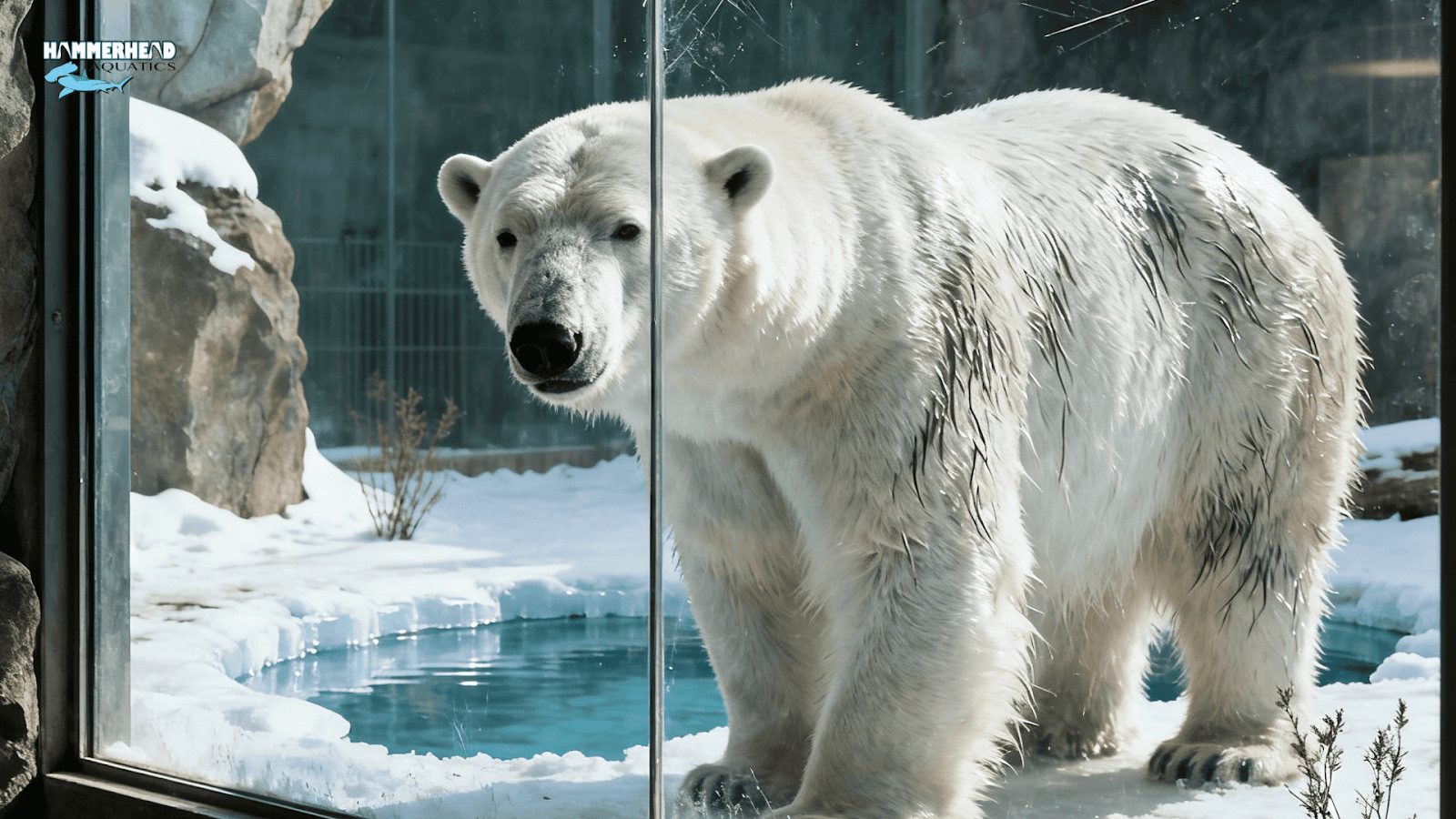

Bears, Large Carnivores, Semi-aquatic Mammals (polar bears, sea lions)

‍

• Typical Panel Size & Shape: Above-ground and underwater windows; large areas; deep water.


• Recommended Material: Acrylic (for underwater), laminated glass for above water, hybrid when needed.


• Approx. Minimum Thickness / Specs:



  • Underwater acrylic: ~150-250 mm (depends on depth).


  • Above-water glass: ~20-30 mm laminated with safety interlayer.



Aquatic Exhibits / Underwater Views (fish, penguins, marine mammals)

‍

• Typical Panel Size & Shape: Deep panels, possibly curved or tunnel style; wide spans, significant water pressure.


• Recommended Material: Cast acrylic almost always preferred; composite if budget or construction constraints.


• Approx. Minimum Thickness / Specs: For every meter of water depth, thickness increases:



  • Example: 300 mm+ acrylic panels for depths >1 m.


  • Glass is unlikely to be feasible for deep water without considerable thickness.



Birds / Aviaries

‍

• Typical Panel Size & Shape: Might have glass or acrylic for viewing, but fewer underwater views.


• Recommended Material: Glass with UV-patterned or bird-safe coatings or acrylic with similar features.


• Approx. Minimum Thickness / Specs:



  • Acrylic: ~20-30 mm.


  • Laminated glass: ~10-20 mm.


  • Safety coatings are very important.

‍

Also, panel size (length/width/height) plays into how much the material will flex or deflect. Acrylic flexes more under load, so large acrylic panels require additional framing or support to prevent bowing or optical distortion.

‍

Material Behavior & Zoo Glass / Zoo Window Engineering Insights

‍

‍

From my 30+ years of experience installing zoo windows, some of the most common issues (and how to avoid them) involve:

‍

1. Optical distortions — thick glass (especially low-iron) gets greenish, double reflections; acrylic is clearer but if polished badly or poorly cut, can distort.


2. Reflection & glare — animals (especially primates, big cats) see their reflections; they may react aggressively; visitors get poor photos. Using anti-reflective coatings, non-reflective seals, interior lighting design, and in some cases angled panels helps.


3. Acoustic and noise control — external visitor noise stresses animals; glass + interlayers or thick composite/glass with acoustic lamination help reduce noise transmission.


4. Thermal and moisture behavior — acrylic expands/contracts more; glass less so; the frame and seal design must accommodate expansion/contraction; also ensure proper sealing against water, humidity, UV.


5. Maintenance & longevity — scratches on acrylic accumulate; glass may scratch less but when damaged may require full replacement. Coatings degrade; windows must be accessible for cleaning or repair. Quality of materials (UV-stable acrylic, high quality laminates, protective coatings) often determines lifespan more than the base material.



Safety standards & regulation compliance — many countries/regions have codes for animal enclosures; safety glazing, load factors, impact resistance, even seismic loads in some places. It’s critical to engage structural engineers familiar with zoo standards.

‍

Comparing Glass vs Acrylic vs Hybrid for Zoo Windows

‍

Glass (Laminated/Safety)

‍

• Clarity & Visual Quality: Good, especially with low-iron or anti-reflective coatings, but may have slight tint. Heavier panels can risk distortion.


• Weight & Installation Complexity: Heavier; requires strong framing, especially for curved panels. Handling large pieces can be more difficult.


• Scratch Resistance: High; resistant to abrasion and harder to scratch.


• Cost: Lower cost per mm for flat panels of moderate thickness; installation and support costs are higher for thick panels.


• Lifespan & Maintenance: Long lifespan if well-built, but coatings may degrade over time. Upgraded safety glazing might be needed periodically.



Cast Acrylic

‍

• Clarity & Visual Quality: Excellent clarity, less tint, can be polished, and great for underwater and panoramic views.


• Weight & Installation Complexity: Lighter; easier to shape, and easier to transport/install. Curves and panels are easier to bond.


• Scratch Resistance: Lower than glass; more prone to superficial scratches, though many can be polished out.


• Cost: Higher material cost, especially for thick panels, but may reduce structural support costs.


• Lifespan & Maintenance: Long lifespan (>30 years possible) if UV-stable and maintained; requires careful cleaning.



Hybrid / Composite

‍

• Clarity & Visual Quality: Balanced clarity from acrylic and durability from glass portions.


• Weight & Installation Complexity: More complex to engineer; bonding between materials is critical, and careful detailing is needed.


• Scratch Resistance: Mixed; glass portions are scratch-resistant, but acrylic portions are more vulnerable. Protective coatings can help.


• Cost: Highest upfront engineering cost but may save on structural support costs in the long run depending on the use case.


• Lifespan & Maintenance: Lifespan depends on the weakest component; risk if the interface between materials fails.

‍

Final Thoughts

‍

Zoo windows offer beautiful picture frames into animal habitats and are vital elements of exhibit design, animal welfare, visitor satisfaction, and long-term operational cost.

The decisions you make about whether to use glass, acrylic, or a hybrid, how thick the panels should be, what coatings or treatments to apply, and how to handle installation and maintenance will very likely define whether your zoo windows become a showcase or a headache in 5-10 years.

‍

Expert Zoo Window Design & Installation

‍

If you are planning to design or upgrade zoo windows, especially with acrylic zoo windows or hybrid glass/acrylic systems , the difference between an average job and an exceptional, safe, long-lasting installation often comes down to the details: correct load calculations, careful choice of interlayers/coatings, understanding species behavior (impact force, tendency to swim, push, rub), appropriate frame and sealant design, and ongoing maintenance.

‍

If you’d like help specifying your zoo or aquarium windows (what thickness, what type, what coatings, what supplier), I’d be happy to offer you a free quote from our team at Hammerhead pools, or guidance based on your species, enclosure type, and local environment. Or drop a comment below with your project details and I’ll help answer any technical questions.

‍

FAQs

‍

‍

Here are some commonly asked, detailed questions from zoo planners, architects, and maintenance teams, based on my direct experience.

‍

1. How do you calculate the required thickness for a zoo window?

In my experience, you start with:

(a) the maximum force or load the panel will face — from water pressure (if applicable), animal weight or impact, visitor leaning or pushing, wind load (for above ground large panels), etc;

(b) the unsupported span/size of the panel (width, height, shape);

(c) allowable deflection or flex — animals seeing distortion is unacceptable; (d) safety factors per local code (often 1.5 -- 3×). Using these, you choose material (glass/acrylic), estimate thickness, then model (finite element analysis or structural glazing engineering) to verify. The frame support design is half of the job: if supports are too far apart, even thick acrylic will bow.

2. Which materials resist scratches and UV yellowing best in zoo windows?

From long experience: high-quality laminated low-iron safety glass resists scratching extremely well

Acrylics with UV-stabilized cast PMMA resist yellowing for decades (30+ years) if properly made; but lesser acrylic grades can yellow, cloud, or degrade.

Protective coatings, keeping cleaning protocols strict (no harsh abrasives on acrylic), and relying on glass faceplates or protective films in high-contact areas (e.g. below-waterline swim zones) help.

3. How do you manage reflections and visitor glare?

It’s surprisingly common for animals to become stressed by their own reflection (esp. primates, big cats) or for visitors to be frustrated by glare. Using anti-reflective coatings on glazing helps.

Also design lighting (both interior exhibit lighting and exterior visitor area lighting) so light sources don’t shine into the glass at visitor angles.

Sometimes panels are angled or framed to reduce reflection. “Bird safe” or UV patterned coatings help too, especially for avian species to avoid collisions.

What happens if a zoo window fails? What safety considerations are there

Safety is paramount. Glass can crack or shatter; laminated safety glass may fissure but often remains intact thanks to interlayers (PVB, SGP). Acrylic doesn’t shatter but can crack, crazing may happen from stress over time. In either case, planning for failure modes is vital: redundant structural supports, accessible replacement, frequent inspections (visual & periodic non-destructive testing), safety glass standards (e.g., EN, ASTM), lock-ins / seals should prevent leakage. For aquatic enclosures, a leak is dangerous not just structurally but for animal welfare, water volume, filtration, etc.

Is acrylic always better than glass for underwater zoo viewing windows?

No, "always" is too strong. Acrylic has many advantages underwater: strength per thickness, clarity, lighter weight. But trade-offs include cost, susceptibility to scratches, maintenance, and sometimes better scratch resistance or hardness with glass. For very shallow water and smaller windows, laminated glass is still viable and more economical. But for deep water, curved tunnels, or very large viewing panels, acrylic tends to be preferred.

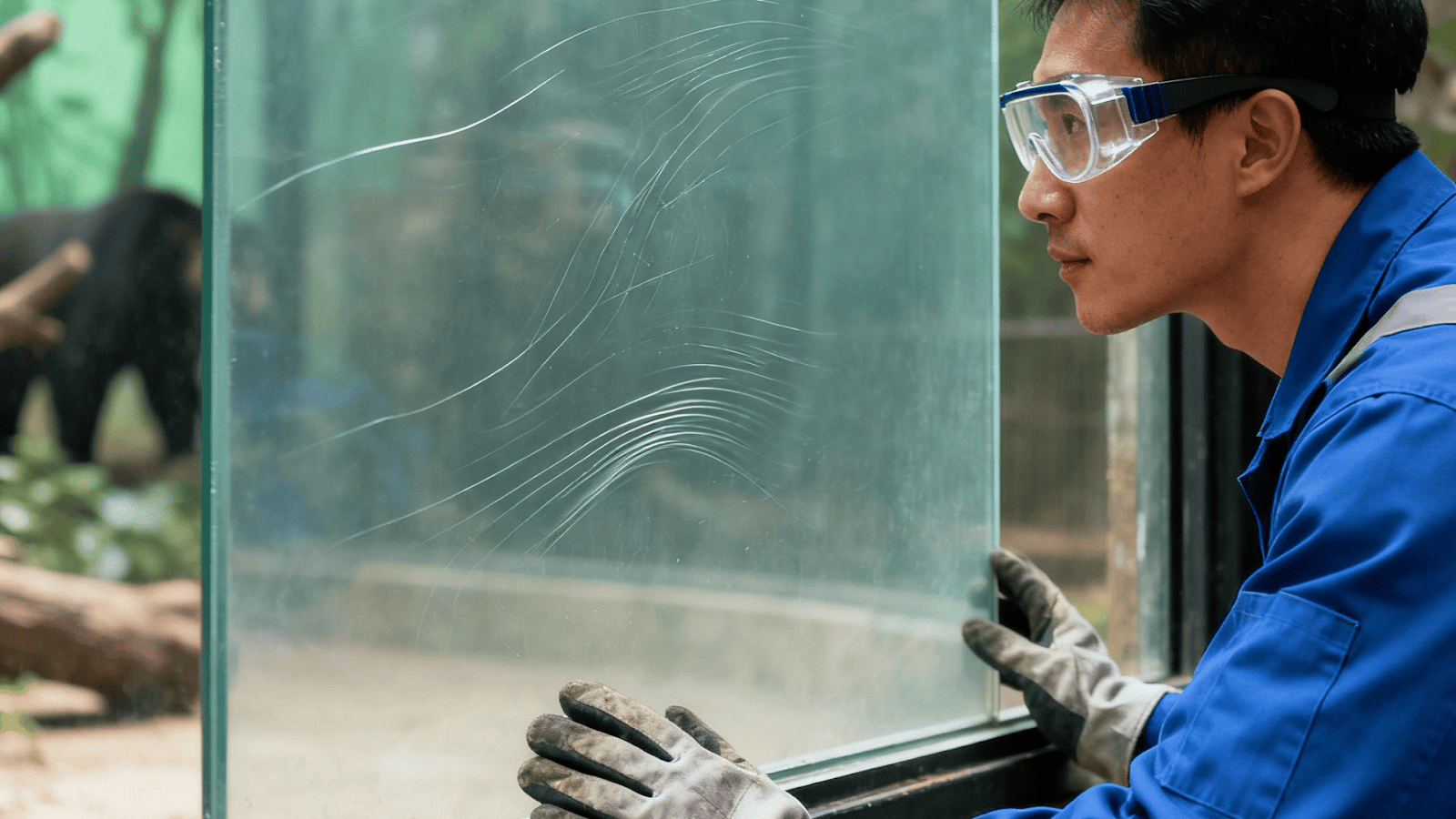

How often should zoo windows be inspected, maintained, or replaced?

From my projects: visual inspections monthly (looking for scratches, cracks, seal failures, water leakage, warping), more detailed inspections annually (checking structural mounting, sealant integrity, coating performance). Depending on usage, exposure, and species, replacement or refurbishing (re-polishing acrylic, reapplying coatings) might be needed every 15-25 years; for high‐impact zones possibly sooner.

‍

‍

‍
