Swimming Pool Anatomy And Plumbing For Beginners [2025]

‍

If you’ve ever stared at your pool equipment pad and thought, “What does all this actually do?”, you’re not alone.

As someone who’s been in the pool-building and renovation business for over 20 years, I can tell you this: most pool owners enjoy the water but have little idea how it circulates, stays clean, or why plumbing matters.

Yet, understanding swimming pool anatomy can lead to the difference between crystal-clear water and costly headaches.

Think of your pool as a living system. Every drain, jet, and pipe is a vein or artery, keeping the water healthy. And just like in the human body, if one part clogs or malfunctions, the whole system is affected.

In this guide, I’ll break down the pool anatomy in plain English while weaving in pro insights. So by the end, you’ll understand not just how your pool works, but how to spot (and prevent) problems before they burn a hole in your wallet.

So let’s begin.

TL;DR - Swimming Pool Anatomy At AGlance

‍

• A pool’s plumbing has three main sections: suction side (water in), filtration (water cleaned), and pressure side (water out).
• Key components include skimmers, main drains, suction lines, pumps, filters, return lines, and return jets.
• Valves and diverters act like “traffic cops,” controlling how and where water flows.
• Extra equipment like heaters, sanitizers, and pool windows enhance comfort, safety, and aesthetics.
• Learn your pool’s anatomy now, and you’ll prevent clogs, leaks, and pump burnouts later.
• Nevertheless, if you get in a pickle, consider contacting experts, such as Hammerhead Pools, who have solid experience rather than always going DIY.



Now let’s get to the details.

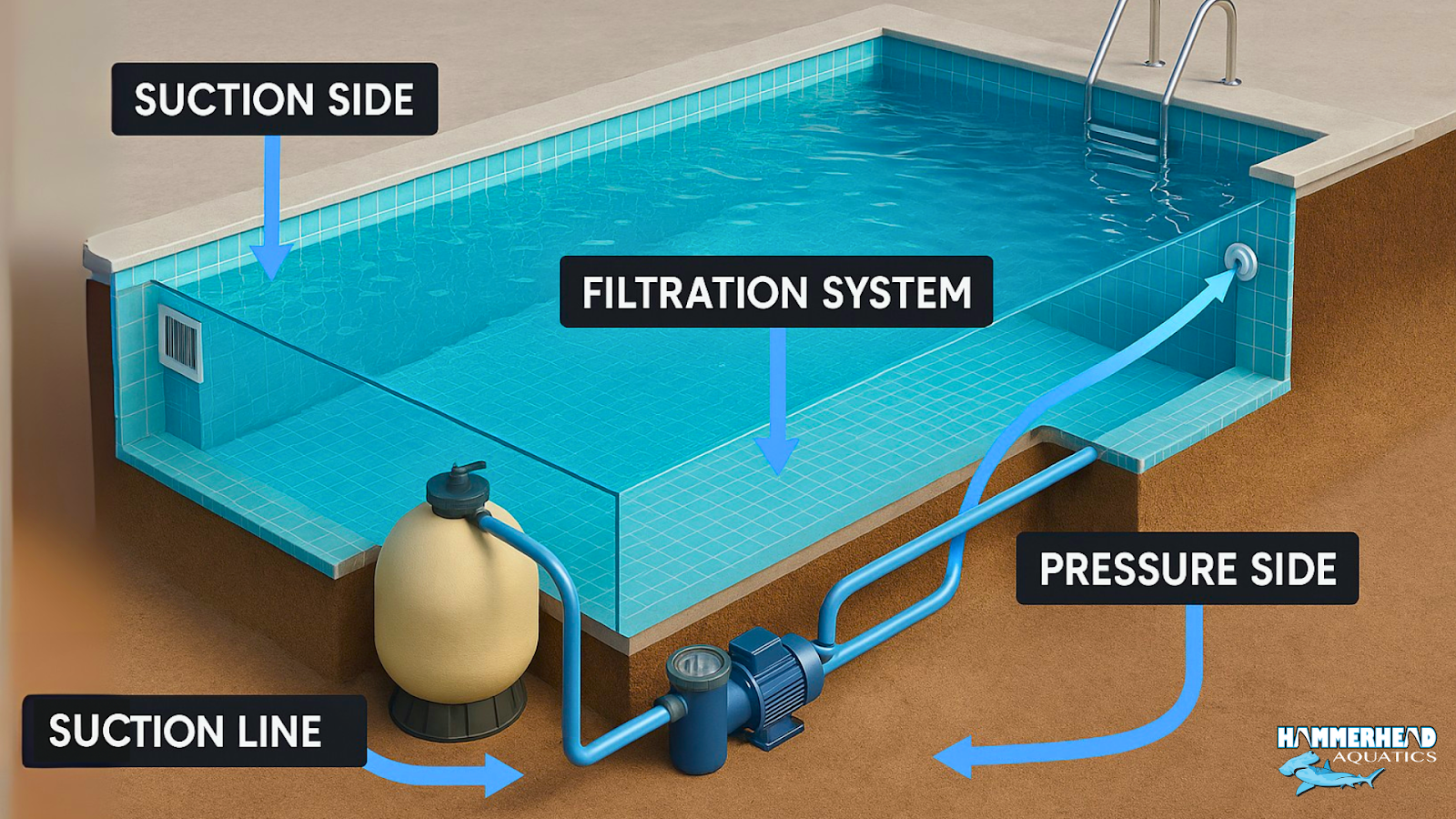

The 3 Core Sections Of Swimming Pool Anatomy

A pool can be divided into 3 sections when you talk about its anatomy and we will look into them more closely.

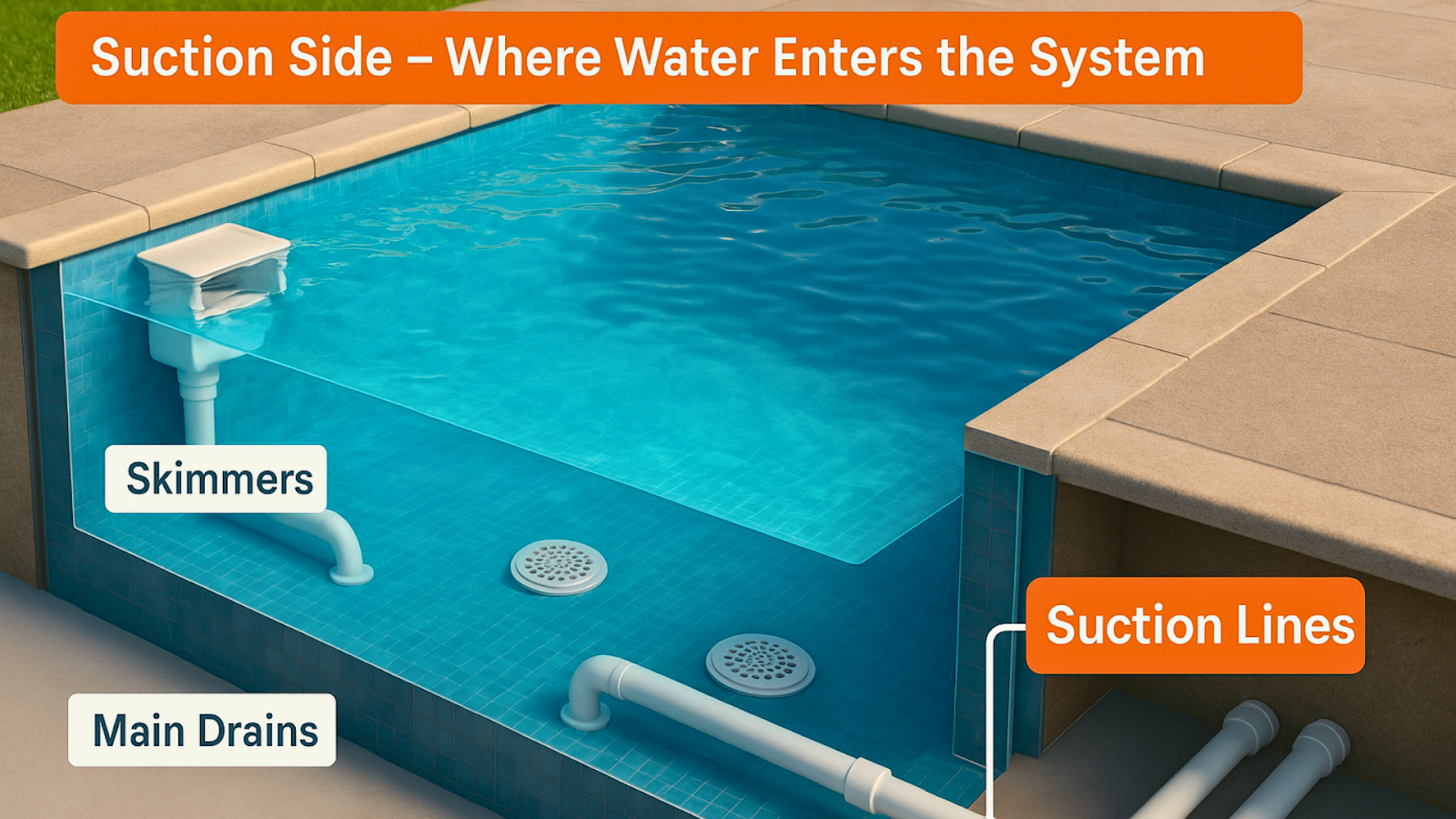

1. Suction Side – Where Water Enters the System

‍

‍

The suction side is the “intake” portion of your pool plumbing. It pulls water from your pool into the circulation system.

Why Does It Matters?

This is the first line of defense against debris and contamination. If suction is weak or blocked, your pump starves for water, i.e., a fast track to equipment failure.

Main Components

• Skimmers
  Rectangular openings at the water level that collect leaves, bugs, and floating debris. Always ensure the skimmer basket is emptied weekly.


• Main Drains
  Located at the deep end, pulling heavier debris and circulating deep water. Modern pools have dual drains for safety.


• Suction Lines & Valves
  PVC pipes transport water to the pump. Valves allow you to balance suction between skimmers and drains or shut the flow off during maintenance.



Installing pool windows near the suction zone (especially in high-end designs) lets you observe flow clarity and detect circulation issues visually, meaning a design and maintenance win with a single plan.

‍

2. Filtration System – The Pool’s “Kidneys”

‍

‍

Once water is pulled in, it enters the pump and filter, where it’s cleaned.

Why It Matters

No matter how beautiful your pool is, dirty or unsafe water ruins the experience. Filtration keeps water swimmable and sparkling.

Main Components:

• The Pump
  Contains an impeller that creates suction. Includes a clear pump lid, strainer basket, and motor. Run dry, and it can burn out fast.


• The Filter
  Comes in three types:



  • Sand Filters – Affordable, easy to maintain. Best for most residential pools.


  • Cartridge Filters – Better filtration, less backwashing. Great for water conservation.


  • D.E. (Diatomaceous Earth) Filters – Industry gold standard for water clarity, but higher maintenance.



Positioning your filtration setup near pool windows enhances light play in the water. When water clarity is high, the aesthetic effect through glass is stunning.

‍

3. Pressure Side – Clean Water Returns

‍

The pressure side pushes filtered water back into the pool.

Why It Matters

This is where circulation happens. Poor return flow means dead spots, algae growth, and uneven heating.

Main Components

• Return Lines
  Carry filtered water back. Usually PVC. May include additional valves.


• Return Jets
  Nozzles that reintroduce water, strategically angled to push debris toward skimmers.


• Additional Equipment
  This is also where upgrades sit:



  • Heaters (gas, electric, solar, or heat pumps).


  • Automatic Sanitizers like salt systems, chlorine feeders, or UV systems.



For luxury pools, integrating return lines near pool windows not only improves circulation but also enhances the “visual motion” of water flowing across the glass.

Beyond Basics: Pro Insights On Pool Anatomy

‍

‍

Valves: The “Traffic Controllers”

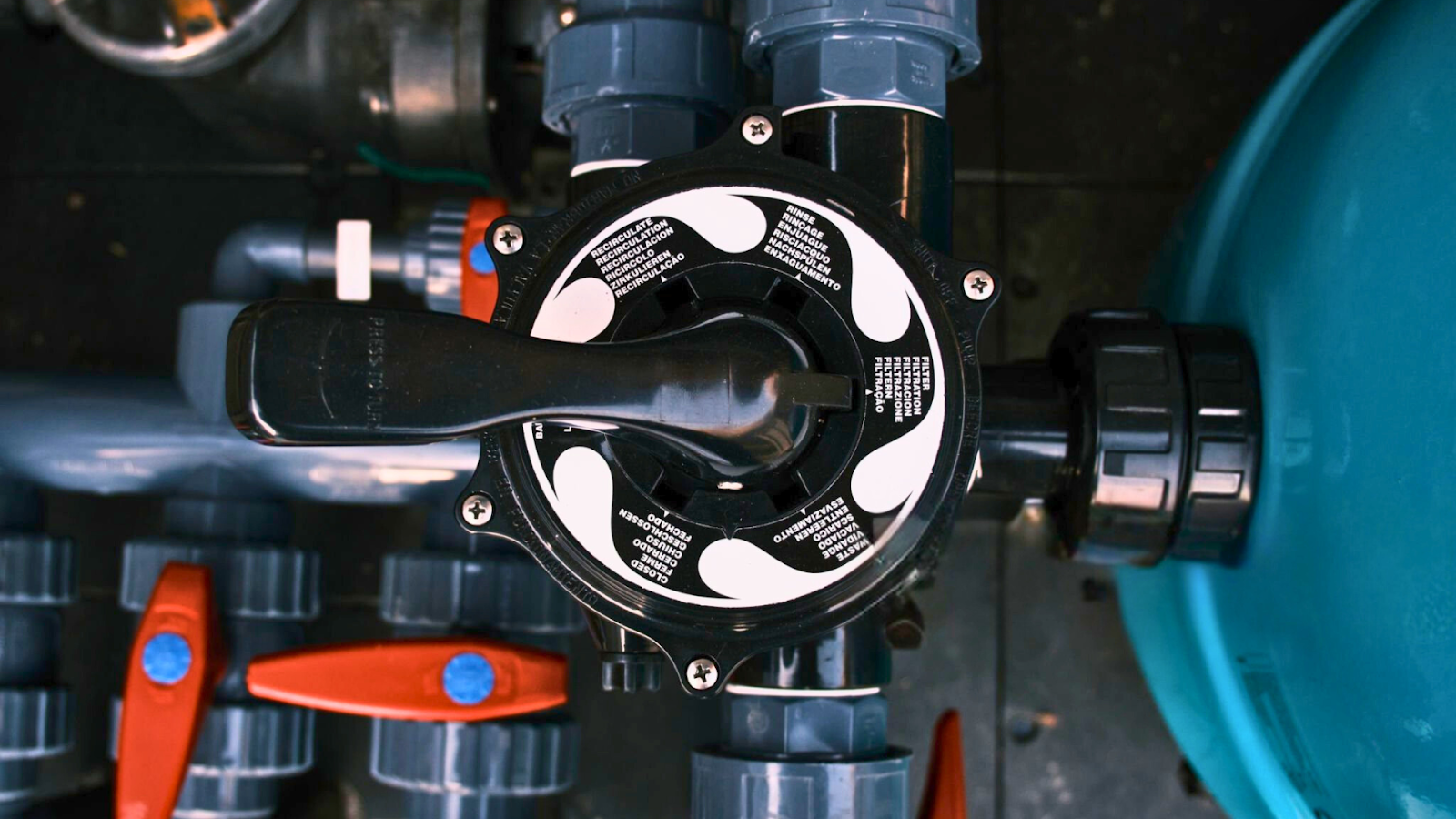

Valves are not just simple on/off switches. Multi-port and three-way valves let you redirect flow between skimmers, drains, water features, and cleaning systems. Proper labeling is essential for beginners, trust me, I’ve seen too many pool owners guessing wrong and draining their pool by mistake.

Circulation Pattern Matters

Returns should be angled to create a whirlpool-like movement, constantly pushing debris toward skimmers. Without this, you’ll fight cloudy water no matter how good your filter is.

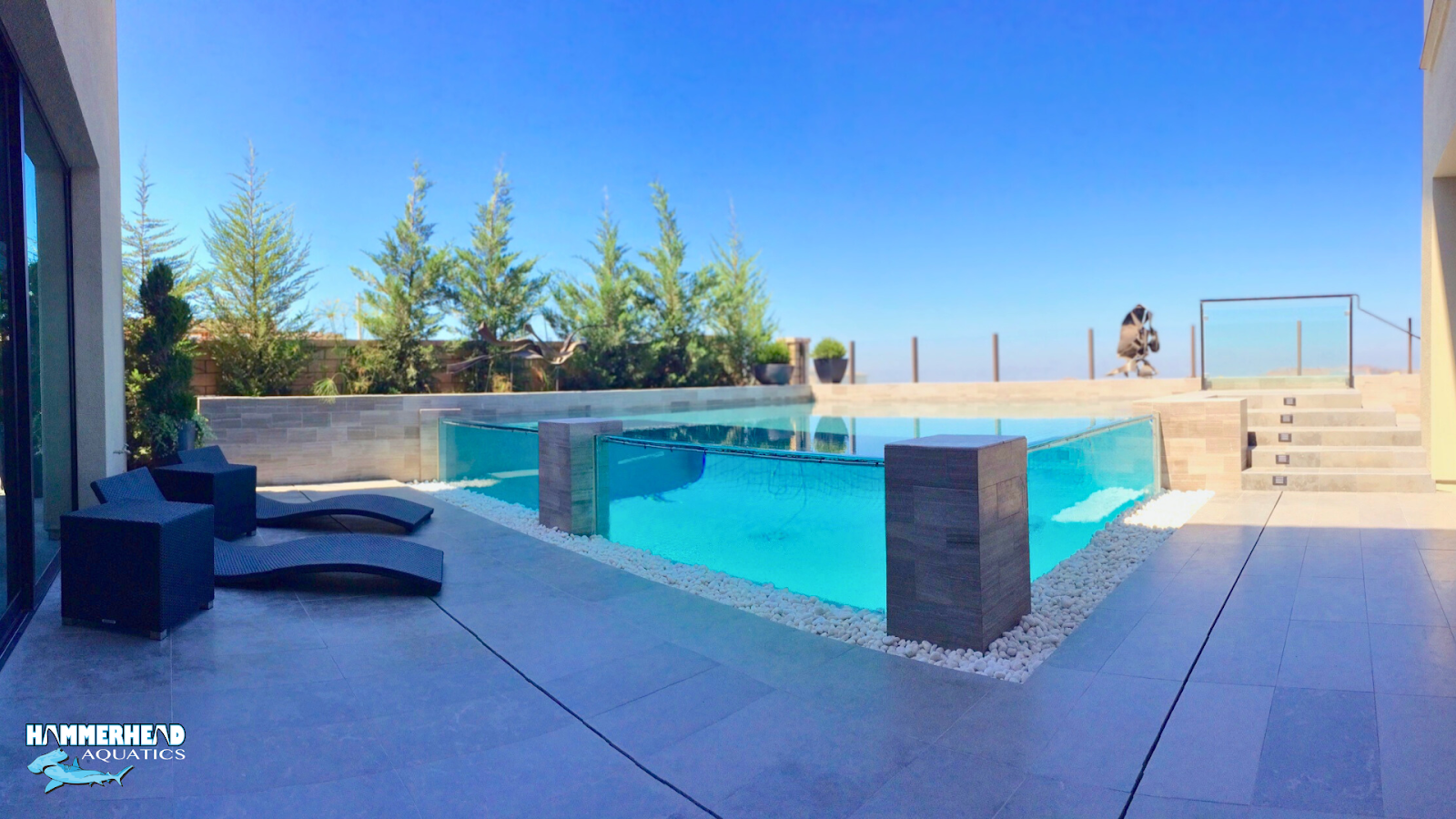

Pool Windows – The Overlooked Feature

‍

‍

As a builder, I always recommend pool windows in luxury or modern pools. They:

• Enhance natural lighting underwater.
• Allow swimmers (and owners) to visually inspect circulation and cleanliness.
• Increase property value by turning pools into architectural features.



Final Thoughts

‍

Understanding a swimming pool anatomy doesn’t mean that you become a technician. Knowing these details can help you avoid mishaps with your pools due to a lack of proper knowledge.

Plus, you get to avoid spending a fortune on cases that can be avoided easily with proper self-maintenance.

Once you know how each part works, you’ll maintain a cleaner, safer, and more efficient pool for years to come.

Expert Pool Window Design & Installation

If you’re considering a pool upgrade in 2025, you can always reach out to the Hammerhead Pools Team.

We’ve been in the industry for over three decades, with successful installs in projects like Market Square Tower Sky Pool, Topgolf Las Vegas, and high-profile rooftop builds in Anaha Tower Pool in Honolulu, HI, USA.

And while we specialize in complex, high-end work, our goal is to deliver value—not inflated costs. You can book a call with us, share your requirements, and we’ll be happy to offer a free quote or suggest alternatives based on your goals and budget. (Contact Us)

If you’re still in the idea stage and just need clarity on:

• Whether a pool window makes sense for your build
• Which material (glass vs. acrylic) fits your climate and layout
• Or how big or small a window can safely be

Feel free to leave a comment below or send us a message. We’ll respond with practical, experience-based advice to help you plan smarter.

FAQs

1. What’s the most common beginner mistake with pool plumbing?
Not checking the skimmer basket regularly. A clogged skimmer chokes suction and stresses the pump.

‍

2. How often should I backwash my pool filter?
For sand or D.E. filters, backwash when pressure rises 8–10 psi above normal. Cartridge filters should be hosed off every 4–6 weeks, depending on use.

‍

3. Can poor circulation damage my pool long-term?
Yes. Stagnant zones encourage algae, scaling, and liner damage. Properly angled return jets and balanced suction prevent this.

4. Where should I place my pool heater in the plumbing line?
Always after the filter. Installing it before risks debris or high chlorine damaging the heater.

‍

5. Do pool windows affect plumbing design?
Slightly—they require careful placement of return lines to prevent cloudy water buildup against the glass. A pro builder ensures plumbing supports aesthetics.

‍6. Is it safe to DIY pool plumbing repairs?
Minor fixes like clearing baskets or replacing pump lids—yes. Anything involving cutting PVC, replacing valves, or pump motor work should be left to a professional.
