What Is Standard Glass Thickness For Aquarium Windows [2025]
One of the most common questions I get as an aquarium window installer is: “What glass thickness should I use for my aquarium?”
It might sound like a simple detail, but in reality, aquarium glass thickness determines the safety, durability, and clarity of the entire structure. Get it wrong, and you risk bowing, cracking, or, in the worst cases, catastrophic leaks.
Over my 30+ years of installing aquarium windows in public exhibits, luxury homes, and commercial projects, I’ve learned that glass thickness is not one-size-fits-all. It depends on factors like water depth, panel size, structural load, and even the choice between glass and acrylic.
In this article, I have put together all the details you need to know when ordering an aquarium when it comes to the standard glass thicknesses for aquarium windows.
Let’s begin.
TL;DR – Quick Takeaways
- Glass thickness depends on water depth & panel size — deeper tanks need significantly thicker glass.
- Aquarium windows are usually laminated or tempered for added strength and safety.
- Standard small home aquariums (up to 24 inches deep) use glass between 6mm–12mm.
- Large public aquariums may require laminated panels over 50mm thick.
- Acrylic is often preferred for massive tanks, but laminated glass still dominates in high-end residential and commercial installations.
- To avoid miscalculations and mishaps, always consider working with expert aquarium glass installers such as Hammerhead Pools.
Pro tip: When building aquariums, always look into quality and expert suggestions. It is not something that can be decided based on the cost.
Now, let’s get into the details.
Why Glass Thickness Matters for Aquarium Windows
Water is heavy. Every additional inch of depth in the aquarium increases the pressure against the aquarium windows. For example, a 3-foot-deep aquarium exerts nearly 200 kg of force per square meter on its glass. If the panel isn’t thick enough, it can flex or crack over time.
Which is why, you have to accurately build the aquarium windows with the right glass thickness that can withstand the water pressure, external impact, and long-term stress.
Choosing the correct glass thickness ensures:
- Safety for animals, visitors, and property.
- Longevity of the aquarium windows (less warping, fewer replacements).
- Clarity - ticker panels can distort views if not manufactured and installed correctly.

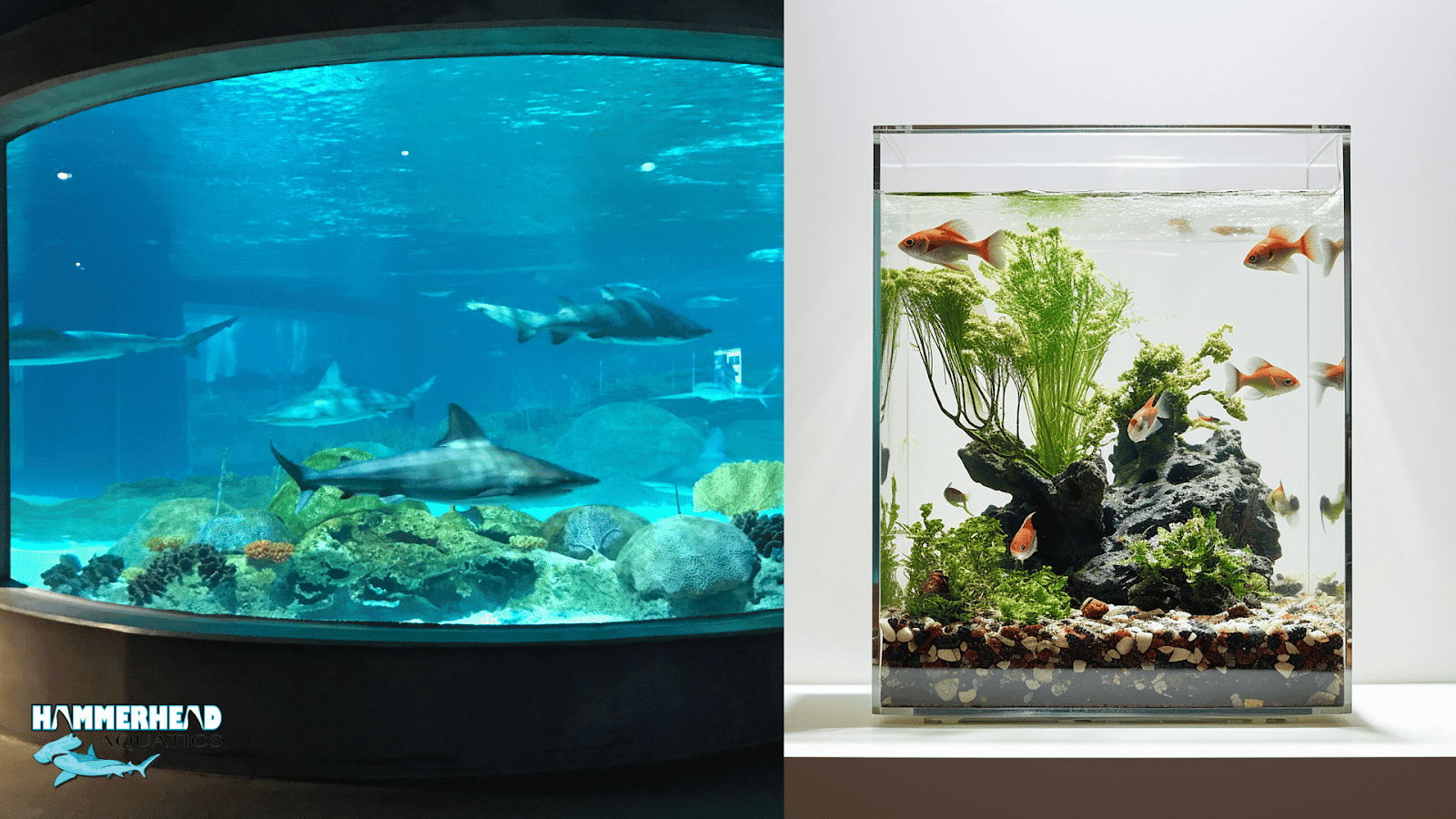

Standard Glass Thickness by Tank Size
Different aquariums have different measurements and depth. So their glass thickness will also vary.

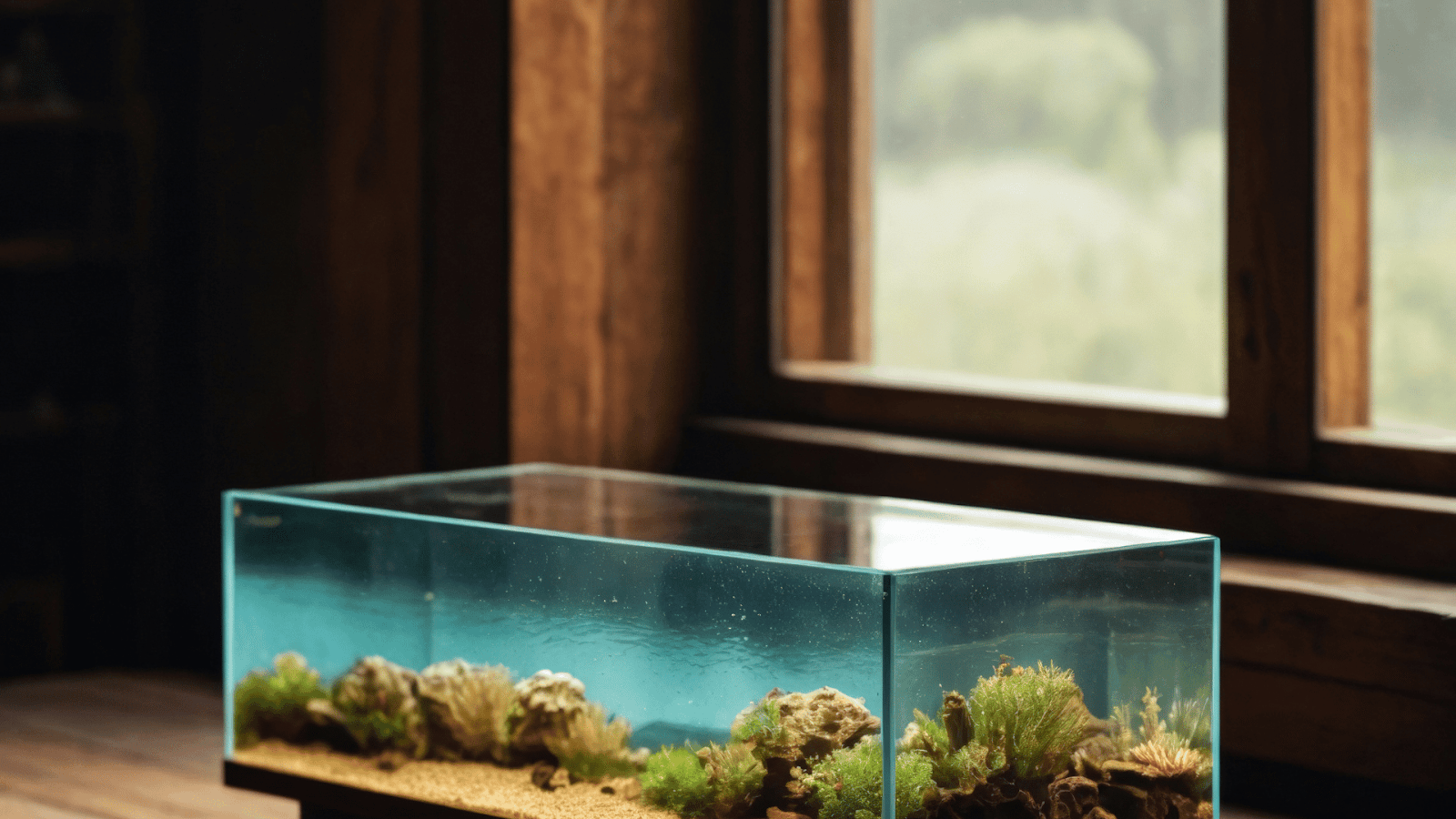

1. Small Home Aquariums (Up to 100 Gallons / 24” Depth)
Most small aquariums use float glass or tempered glass and the glass thickness may vary depending on the capacity and depth.
Such tanks are usually hobbyist tanks where depth doesn’t exceed 24 inches.
Standard Thickness:
- 50–100 liters: 6mm glass
- 100–200 liters: 8mm glass
- Up to 24 inches deep: 10–12mm glass
In this case, ensure panels are properly braced to prevent bowing, especially in rimless aquariums.
2. Medium Aquariums (200–500 Gallons / 30–36” Depth)
These require stronger panels due to higher water pressure. Their sizes are quite large (as discussed below). At these sizes, single-pane tempered glass is risky. Laminated glass (two or more sheets bonded with PVB interlayers) is recommended for safety.
Such aquariums are often used in custom home aquariums or hotel lobby tanks
Standard Thickness:
- 30 inches deep: 15–19mm glass
- 36 inches deep: 19–25mm laminated glass

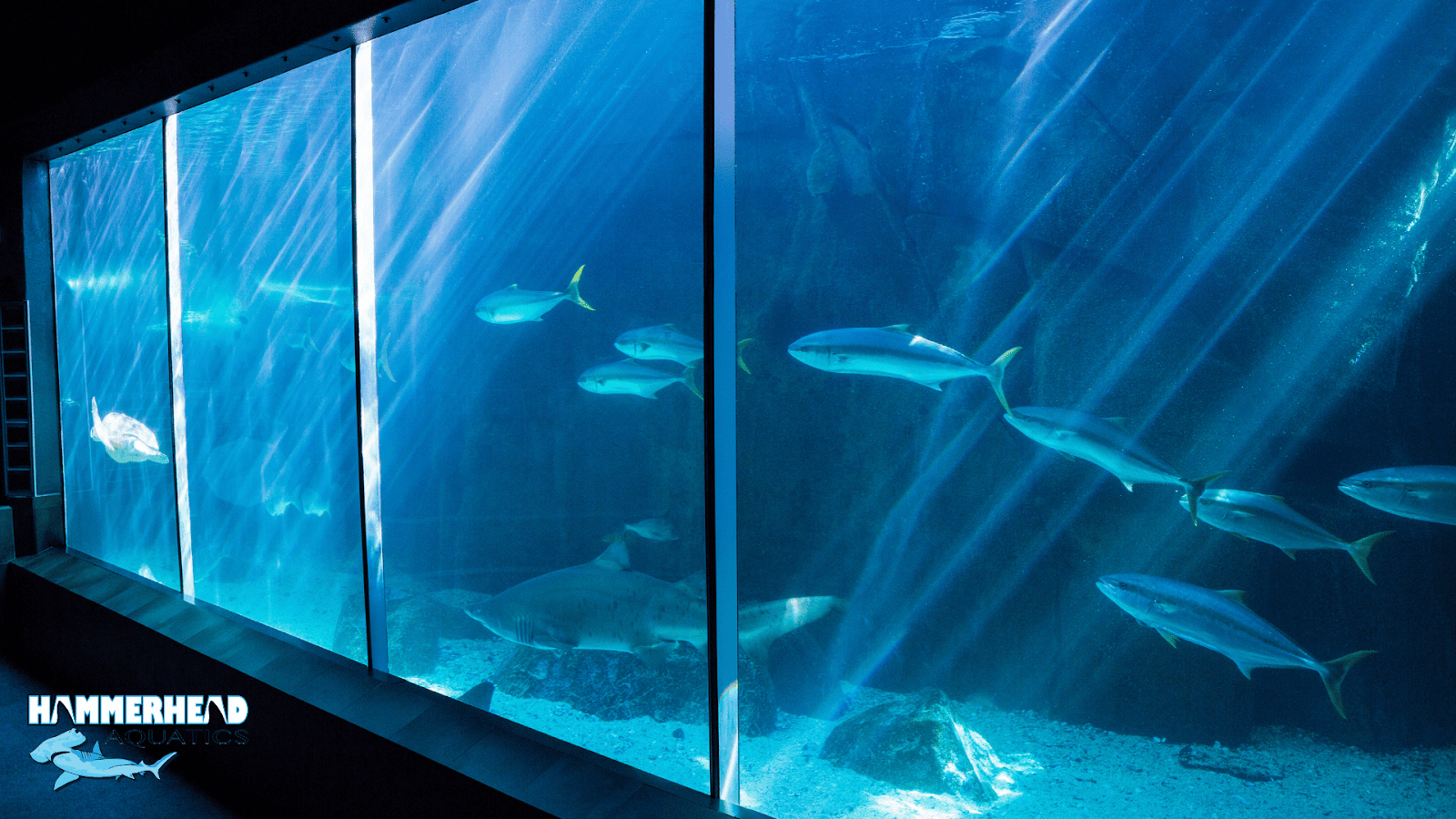

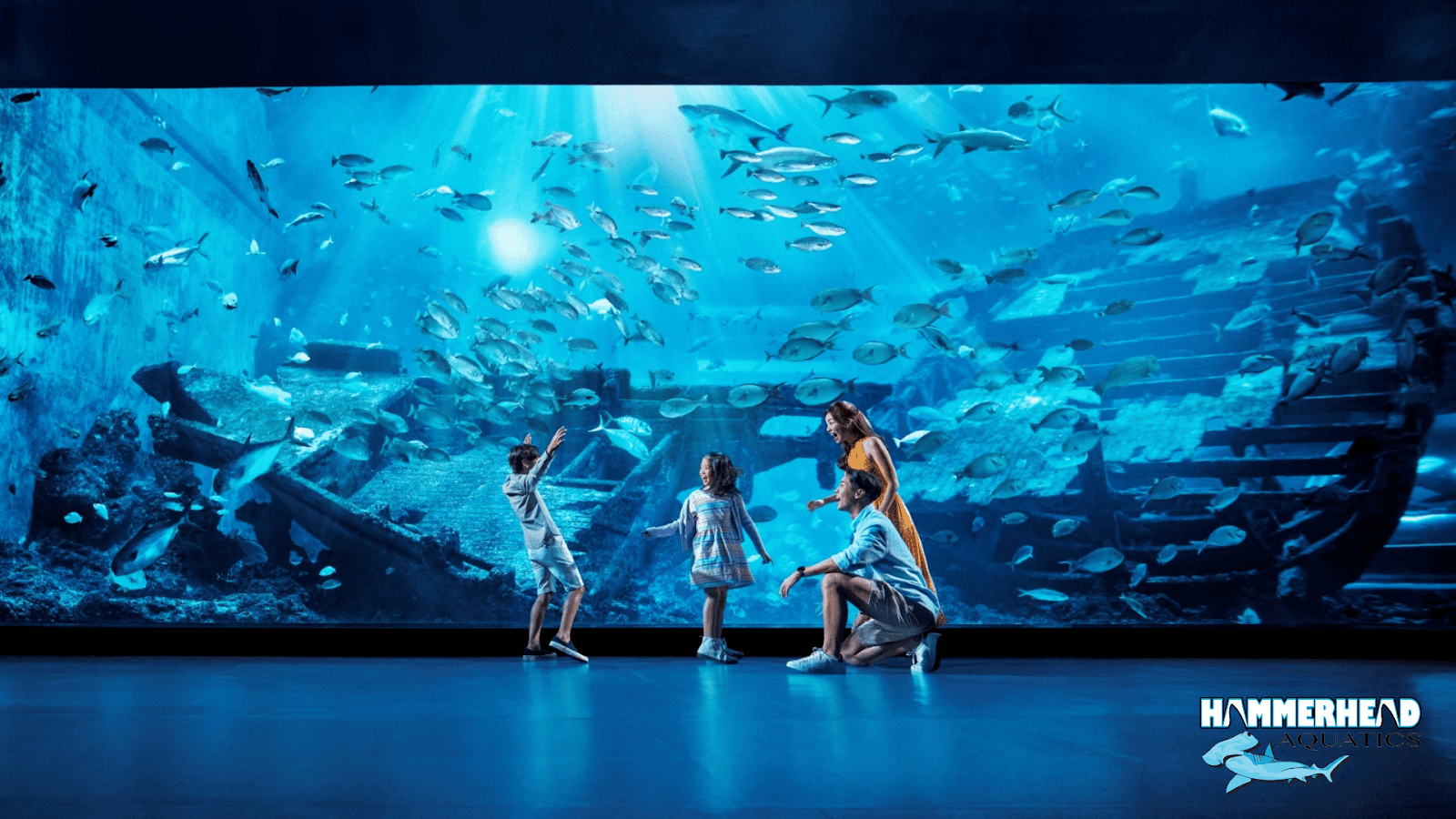

3. Large Public Aquariums (Over 500 Gallons / 36–72” Depth)
At depths exceeding 4 feet, standard glass becomes impractically thick and heavy. Acrylic offers greater flexibility and clarity at extreme thicknesses. So, for such aquariums, professional-grade laminated glass or acrylic panels are required.
You will see such in public aquariums, zoo exhibits, and high-end private installations.
Standard Thickness:
- 36–48 inches deep: 25–38mm laminated glass
- 48–72 inches deep: 38–50mm laminated glass
Beyond 72 inches: acrylic panels 75mm–300mm thick are more practical.

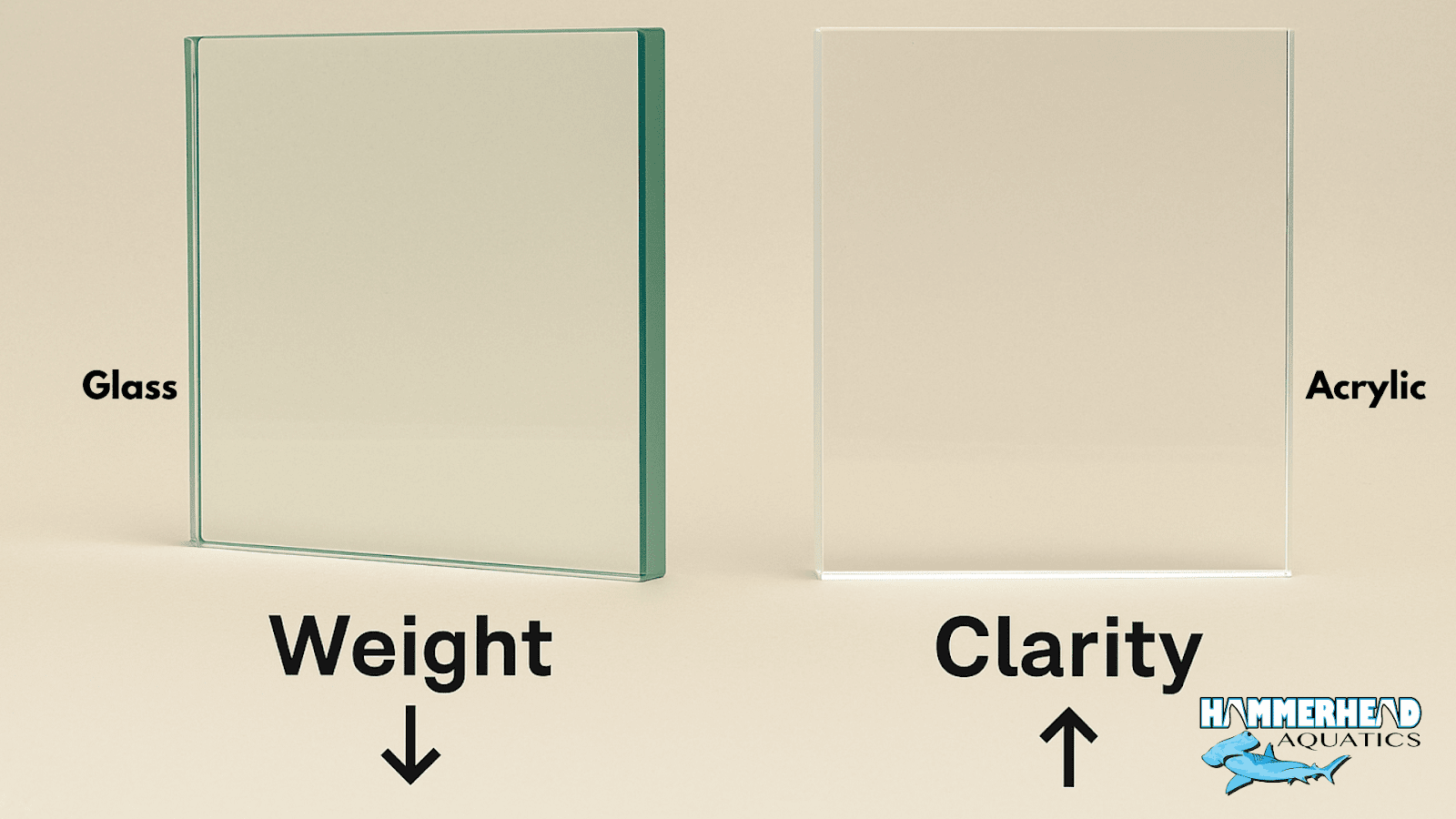

Glass vs. Acrylic for Aquarium Windows
Glass
- Pros: Scratch resistant, cost-effective, doesn’t bow easily.
- Cons: Heavy, less impact-resistant, difficult to fabricate in very large thicknesses.
Acrylic
- Pros: Lighter, stronger, easier to mold into curves, seamless large panels.
- Cons: Scratches easier, requires specialized maintenance.
Takeaway: For aquariums under 4 feet deep, glass windows are standard. For deeper or oversized designs, acrylic becomes the smarter option.
Engineering & Safety Considerations
Laminated vs. Tempered Glass
- Tempered Glass: Stronger than standard glass, shatters into small cubes when broken.
- Laminated Glass: Holds together with PVB interlayers, safer for large aquariums where impact risk is high.
Best Practice: For aquarium windows, laminated glass is preferred, especially in custom installations.

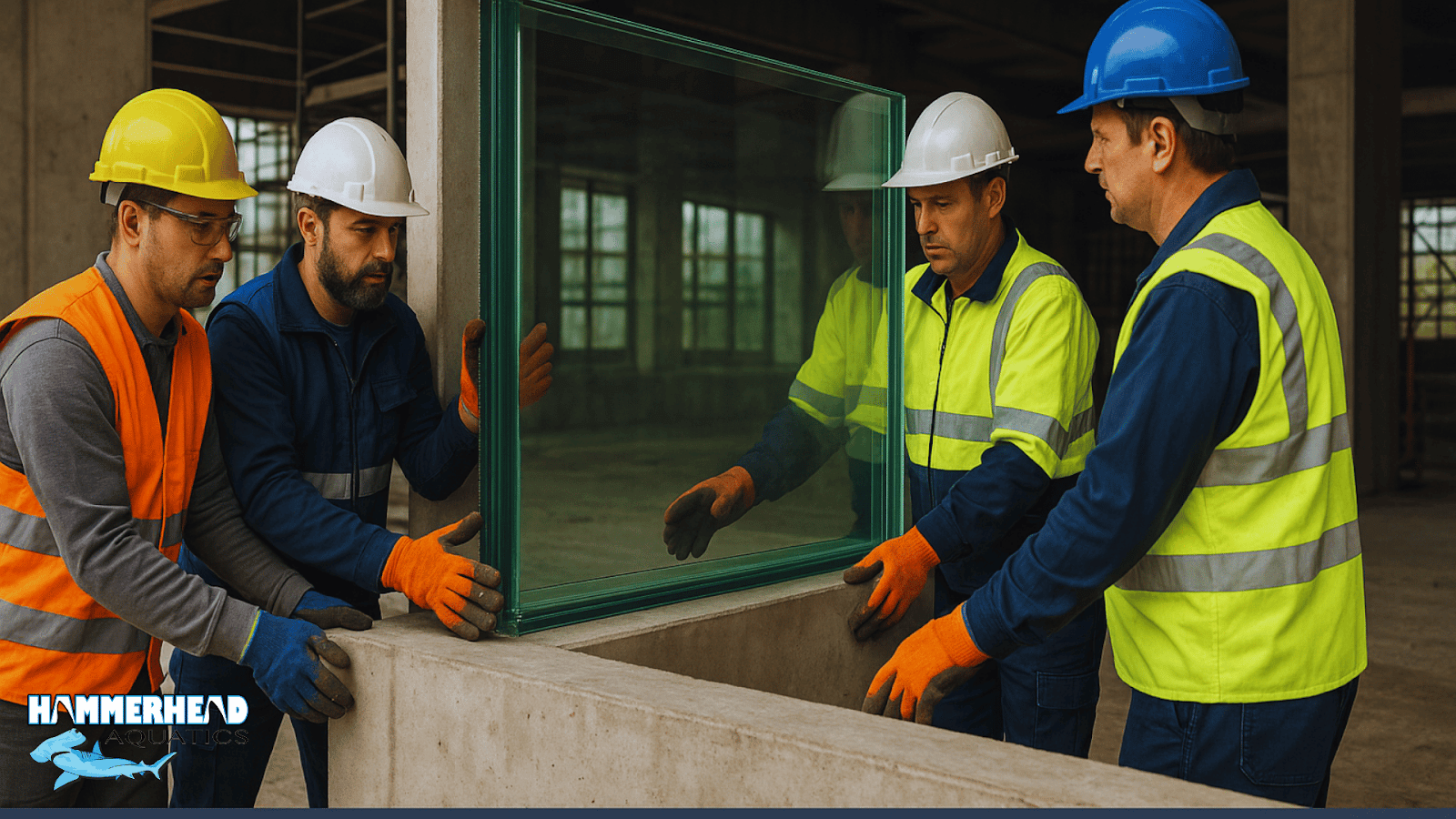

Bracing and Frame Design
Even with the right thickness, poorly designed framing can lead to failures.
- Steel-reinforced frames prevent panel shifting.
- Flexible seals accommodate slight expansion without cracking the glass.
Long-Term Maintenance

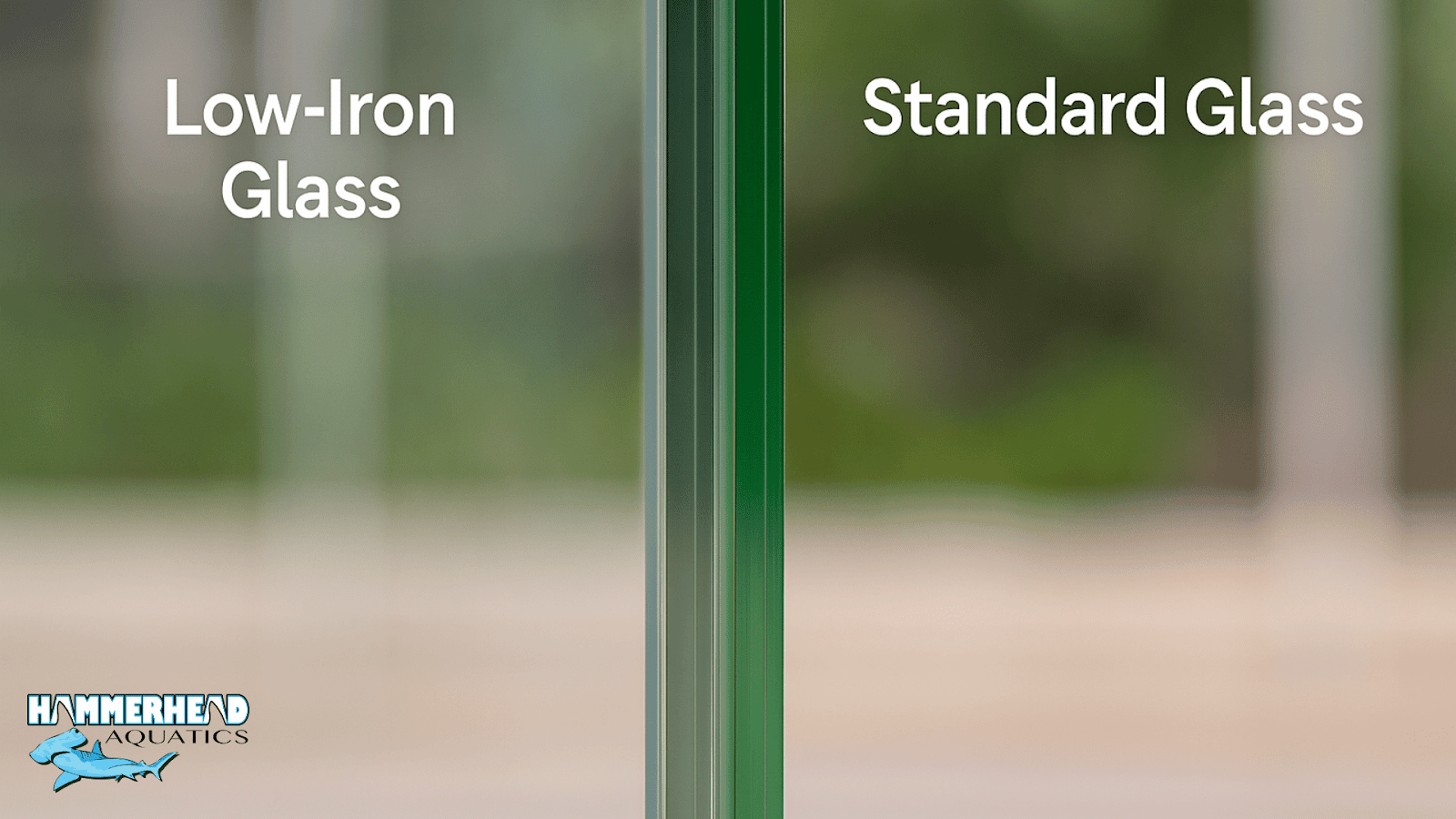

- Use low-iron glass to prevent green tint in thick panels.
- Consider anti-reflective coatings for better viewing.
- Clean with non-abrasive tools to prevent scratches.
Final Thoughts
The standard aquarium glass thickness depends entirely on water depth, tank size, and intended use.
For most home aquariums, 6–12mm suffices. For medium-sized custom builds, 15–25mm laminated glass is standard. But for large public aquariums, glass thickness exceeds 50mm — often replaced by acrylic for practical reasons.
Expert Aquarium Windows Installation
After decades of designing and installing aquarium windows of every size, I can confidently say that choosing the right glass thickness is the single most important decision in any project. Partnering with specialists, such as Hammerhead Pools, ensures your aquarium is safe, durable, and crystal-clear for decades of enjoyment.
You may request a free quote. [Contact Us]
And if you want to add to what I wrote here, you may leave a comment below.
Cheers!
FAQs
1. Can I use regular glass for an aquarium?
Not recommended. Standard float glass is too brittle. Use tempered or laminated glass for safety.
2. Why does glass thickness increase with tank height?
Because water pressure increases with depth. Taller tanks need much thicker panels to resist bowing and cracking.
3. Is laminated glass better than tempered for aquariums?
Yes. Laminated glass stays intact if cracked, making it safer for large aquariums and public exhibits.
4. What’s the maximum practical glass thickness for aquariums?
Around 50mm. Beyond that, panels become too heavy and costly — which is why acrylic is used for massive aquariums.
5. Does thicker glass affect viewing clarity?
Yes, thicker glass can have a green tint. That’s why low-iron glass is often used in high-end aquarium windows for better visibility.
6. Can acrylic completely replace glass in aquariums?
For large, deep tanks, yes. But for small to medium aquariums, glass remains more practical and scratch-resistant.
