Best Practices For Installing Large Aquarium Windows [2025]

‍

Most people admire a giant aquarium window from the outside and think, “Wow, that’s beautiful.” But what they don’t realize is the years of expertise, calculations, and craftsmanship hiding behind that glass.

I’ve spent over 30 years designing and installing aquarium windows for private villas, hotels, and public aquariums. And here’s the truth: the difference between a window that stays watertight for decades and one that leaks within months isn’t luck, it’s about following best practices from start to finish.

This guide breaks down the exact practices professionals rely on when installing large aquarium windows. Think of this as the blueprint I wish every client had before signing off on a project.

‍

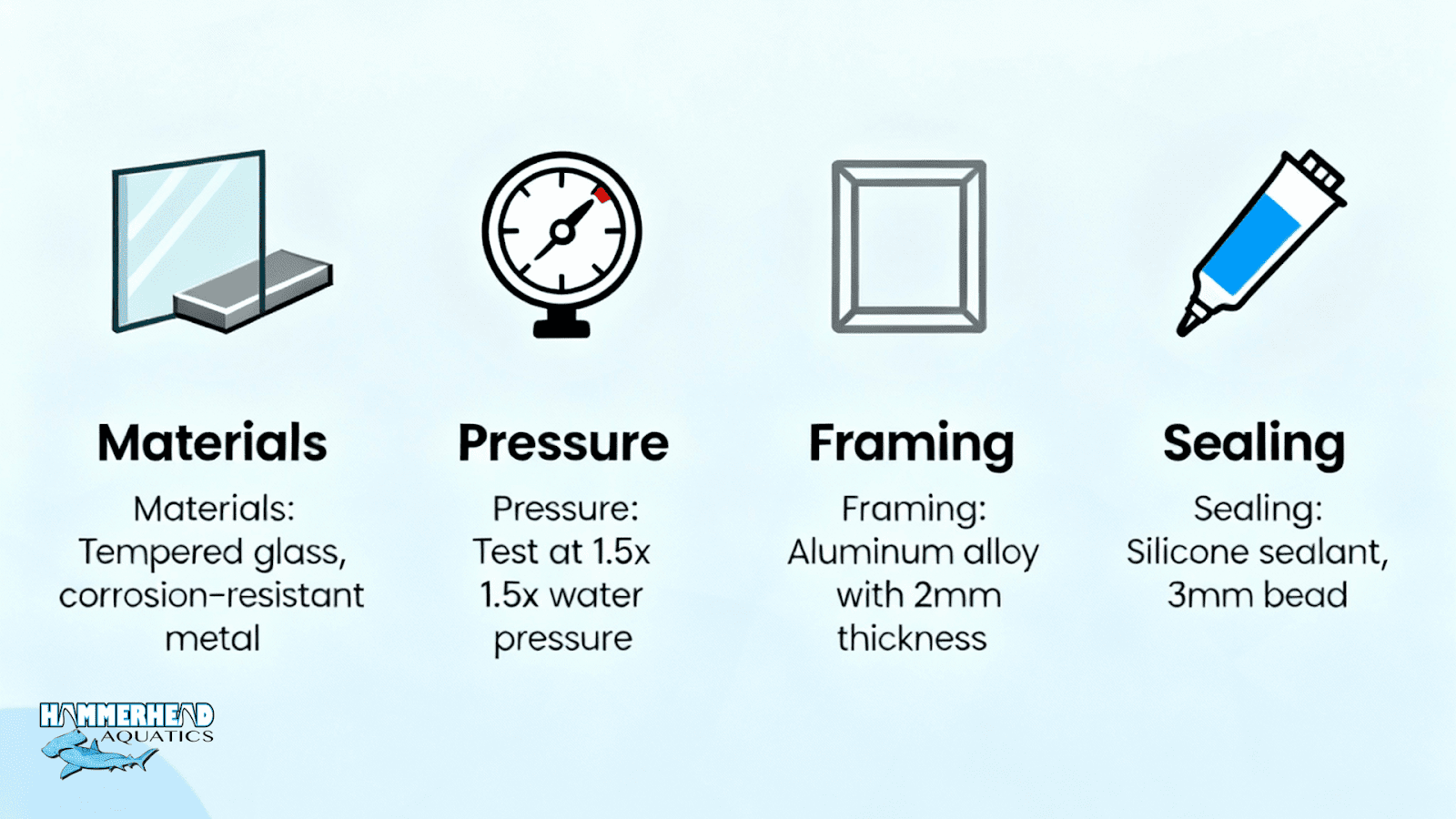

TL;DR – Best Practices for Aquarium Window Installation

‍

‍

• Choose the right material: Acrylic for curved, lightweight builds; laminated glass for maximum scratch resistance.
• Account for hydrostatic pressure: Thickness and framing must be engineered based on water depth, not guesswork.
• Frame with precision: Steel or concrete rebates must be true, level, and reinforced to prevent stress points.
• Seal like your project depends on it: Specialized marine-grade sealants and compression gaskets are non-negotiable.
• Test before display: Always run a staged hydro test before adding décor, livestock, or lighting.



👉 Done properly, aquarium windows don’t just frame the view, they become the view. Need it done right the first time? Our team specializes in custom large-scale installs.

‍

Best Practices for Installing Large Aquarium Windows

‍

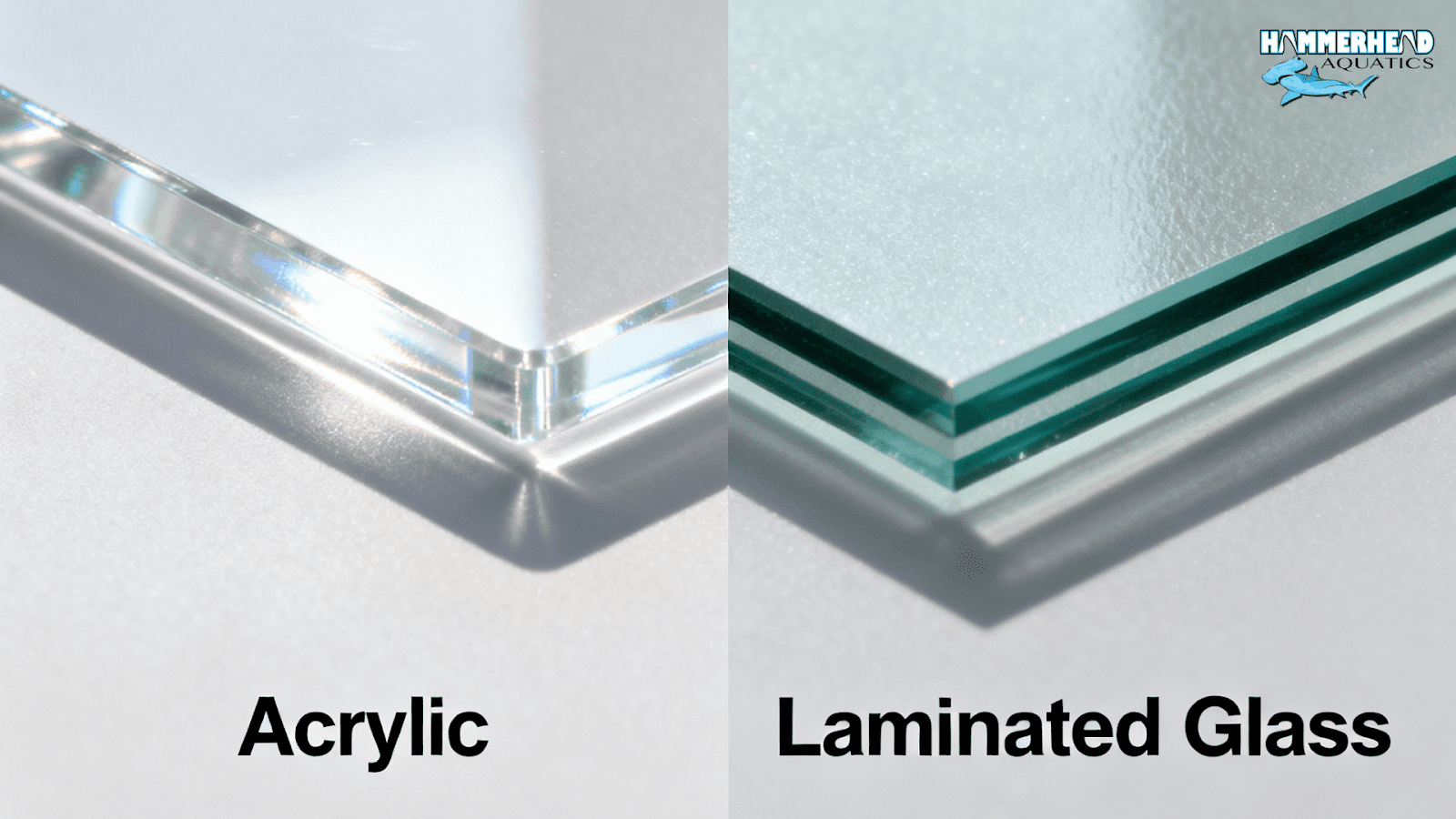

1. Select the Right Window Material

‍

‍

One of the most common questions I hear is: “Glass or acrylic?”

Both have their place:

• Acrylic windows are lighter, easier to mold into curves, and have excellent optical clarity. But they scratch more easily and expand slightly under pressure.
• Laminated glass windows are heavier and trickier to maneuver, but they resist scratching, don’t bow as much, and provide excellent long-term durability.

For public aquariums where children press their hands against the glass daily, I recommend laminated glass. For luxury homes where curved panoramas are the focus, acrylic usually wins.

‍

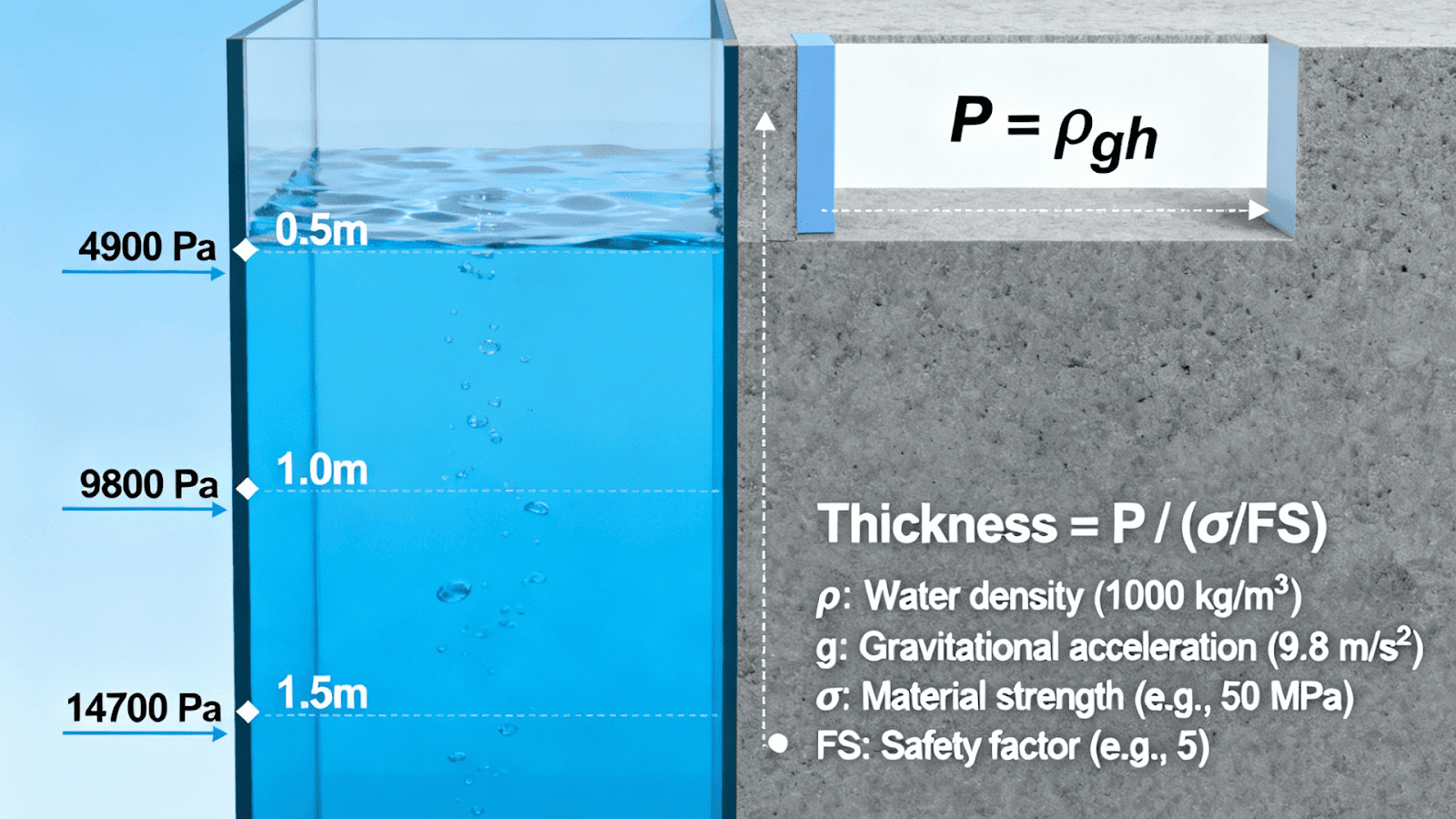

2. Engineer for Water Pressure, Not Just Size

‍

‍

I’ve seen too many contractors treat an aquarium window like a “big house window.” That’s a mistake. Water creates hydrostatic pressure that increases with depth. For example, a 3m-deep tank has nearly triple the pressure of a 1m tank — regardless of length or width.

This means window thickness and framing should always be calculated by an engineer, not guessed. Undersizing here leads to bowing, cracks, or catastrophic leaks.

‍

3. Build a Precision Frame (Rebate)

‍

‍

The rebate, the pocket in which the window sits, is just as important as the window itself. A sloppy rebate leads to uneven pressure and sealant failure.

• For concrete frames, the rebate must be perfectly level and cured before window installation.


• For steel frames, welding and finishing should be free of warping or sharp edges that can compromise seals.



I always recommend a minimum tolerance of 2mm flatness across the rebate. Anything more uneven puts your investment at risk.

‍

4. Seal with the Right Products

‍

‍

This is where even experienced builders cut corners — and where I get called back for “emergency repairs.”

Generic silicone won’t cut it. For aquarium windows, you need:

• Marine-grade sealants tested for constant submersion.


• Compression gaskets that maintain elasticity under load.


• Proper surface prep — no dust, no oil, and primed if required.



I’ve seen sealant jobs fail simply because the surface wasn’t wiped down before application. Small details, big consequences.

‍

5. Test Before You Trust

‍

‍

One of my golden rules: Never finish the décor before testing the seal.

After window installation, we always run a staged hydro test:

• Fill the tank 25% and wait 24 hours.
• Fill to 50% and check again.
• Only after full capacity is proven watertight do we add substrate, corals, or fish.



This prevents the heartbreak of tearing apart a finished aquascape just to fix a leak.

‍

Conclusion

‍

Installing large aquarium windows is more of engineering and craftsmanship rolled into one. Done right, they transform an aquarium into a living piece of architecture. Done wrong, they become a very expensive headache.

Expert Aquarium Window Design & Installation

If you’re planning a project, whether it’s a home showpiece, hotel lobby aquarium, or a public display tank, don’t leave the most critical part to chance. Our team at Hammerhead Pools, specializes in custom aquarium window design and installation that combines beauty with long-term reliability.

💡 Ready to discuss your vision? Get a free quote today or drop a comment below, and I’ll personally answer your questions.

‍

FAQs

‍

‍

1. What’s the maximum size for an aquarium window?

There’s technically no “max size,” but the bigger the panel, the more challenging the engineering. The world’s largest acrylic panels are over 60 feet wide, but for residential projects, most windows are under 4m.

‍

2. How thick should an aquarium window be?

It depends on water depth, not just dimensions. For a 2m-deep tank, you may need 50–70mm acrylic or laminated glass panels. Always have this calculated by a structural engineer.

‍

3. Can you replace an aquarium window without draining the tank?

In theory, small repairs can be done underwater, but full replacements almost always require draining to avoid accidents. Plan for this in maintenance schedules.

‍

4. Do aquarium windows fog or lose clarity over time?

Acrylic may develop micro-scratches but can be polished. Glass resists scratching but must be kept free of hard water deposits. Proper cleaning and protective coatings extend clarity.

‍

5. How much does a large aquarium window cost?

Costs vary based on material, thickness, and framing complexity. A residential-size laminated glass window may start at a few thousand dollars, while public aquarium panels can exceed six figures.
