Acrylic vs Glass for Underwater Windows - Detailed Comparison [2025]

‍

Over three decades of designing and installing underwater windows, for pools, private aquariums, public aquariums, zoos, and marine observation decks, have taught me that the choice between acrylic vs glass is more about safety, durability, clarity, maintenance, and long-term value, than mere aesthetics.

‍

Many clients initially lean toward what looks cheaper (mostly glass), or what they think will “look more premium”. But experience shows that making the right material choice early saves thousands in headaches, repairs, or worse, catastrophic failures.

‍

In this article I’ll walk you through the real, technical, and design-level differences between acrylic windows and glass windows in underwater settings.

‍

I’ll cover structure, clarity, installation, maintenance, and long-term performance. And I’ll share lessons from projects past, so you can pick what’s truly best for your underwater window.

Let’s begin.

‍

TL;DR - Key Takeaways

‍

‍

• When choosing Acrylic vs glass, you need to consider several factors such as strength, clarity, weight, maintenance and cost.
• Acrylic underwater windows flex safely; glass may crack suddenly.
• Acrylic stays optically clear in thick panels; glass often tints green.
• Acrylic is lighter, easier to install, and allows larger spans.
• Glass resists scratches, but acrylic scratches can be polished out.
• Glass is cheaper short-term; acrylic saves more over the window’s life.

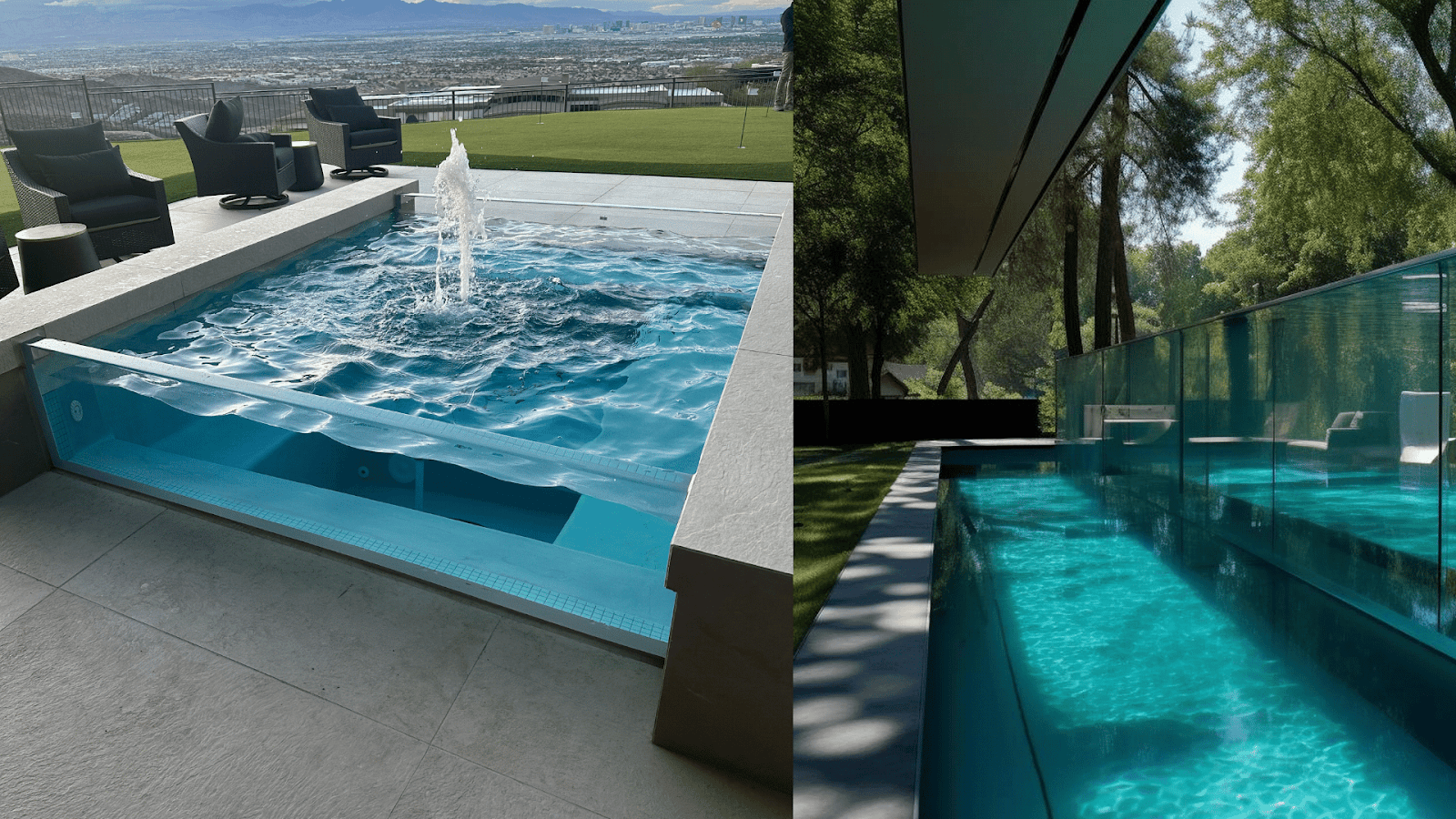

• Acrylic suits large, curved, or deep underwater windows; glass fits small, flat, budget builds.
• Many top aquariums and luxury pools choose acrylic. But you should always work with experts (such as Hammerhead pools) for installation and advice.

‍

Next, I will compare acrylic vs glass across several key factors. Throughout, I have referenced “underwater windows” (pool windows, aquarium viewports, marine observatory glazing) since the behavior under water (pressure, clarity, distortion, safety) changes many things compared to ordinary windows.

‍

Let’s get into the details.

‍

Key Comparison Factors: Acrylic vs Glass For Underwater Windows

‍

Let us compare these two materials directly on a few key factors of consideration by experts.

‍

1. Material Composition & Types

‍

‍

• Acrylic Underwater Windows : Acrylic = PMMA (Polymethyl Methacrylate), cast or extruded, often thick blocks or panels. It can be chemically bonded, bent or curved, polished. UV treated variants exist.

‍

• Glass Underwater Windows: Various types of glass: tempered, laminated, low-iron or “ultra-clear”, safety glass. Can be layered/laminated to improve strength. But brittle by nature.

‍

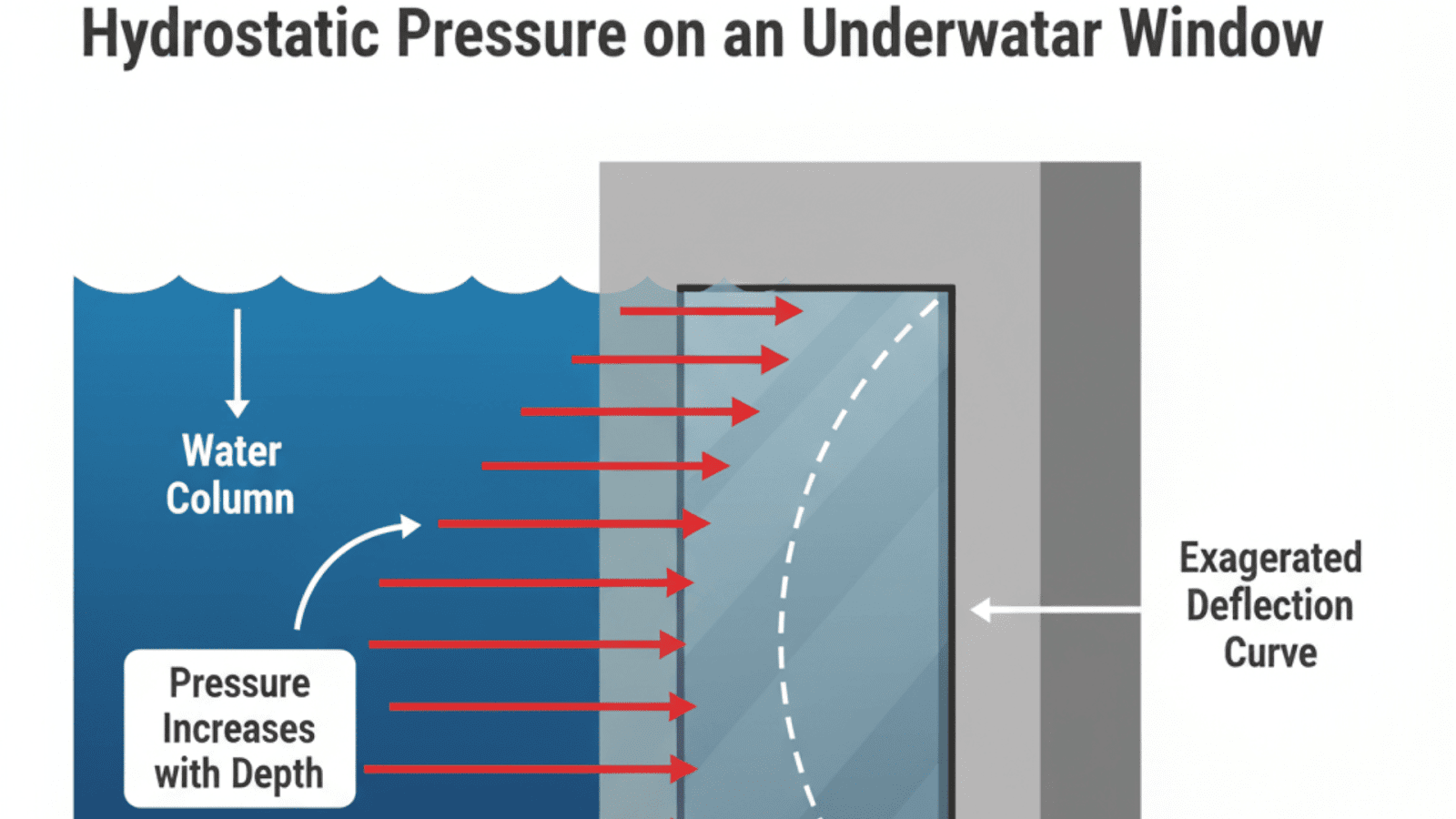

2. Strength under Water Pressure / Impact Resistance

‍

‍

• Acrylic Underwater Windows: Acrylic is much more impact resistant. It flexes rather than fractures. In many data sources, acrylic is said to be up to 10-17× stronger than glass of the same nominal thickness when resisting impact or dynamic loads. Large panels of acrylic perform well under deep-tank hydrostatic pressure because thickness can be increased without making the panel impossibly heavy or risking brittle failure.

‍

• Glass Underwater Windows: Glass, especially tempered or laminated, can handle compressive strength well, but is brittle under bending or impact. Under high water pressure, glass needs much thicker panels, strong framing/support, and strict installation tolerances to avoid risk of cracking. Uneven load or point loading (from installation error) can lead to sudden failure.

‍

3. Optical Clarity, Light Transmission, Distortion

‍

‍

• Acrylic Underwater Windows: Acrylic typically has high visible light transmission (VLT), often over 88-92% in good quality cast acrylic, even in substantial thickness. Less greenish tint. Less distortion through curves, especially when properly polished and optically treated.

‍

• Glass Underwater Windows: Glass’s clarity is good especially in thinner panels; in low-iron glass it can be near clear. But when thickness increases (needed for strength), glass tends to have color tint (green or blue) or lower VLT. Also, thick glass can distort more (due to refractive index, especially at angles). Laminated glass or multi-layer safety glass further reduces clarity sometimes.

‍

4. Weight & Structural Support

‍

‍

• Acrylic Underwater Windows: Acrylic is about half (or less) the weight per unit volume of equivalent strength glass. That means easier transport, less heavy framing, less structural load on foundations or pool walls. Easier to lift and move, especially for large underwater windows.

‍

• Glass Underwater Windows: Glass is heavy. For large or deep underwater windows, glass panels become thick and heavy. That imposes heavier support structures, more challenging installation logistics. Heavier framing, heavier anchors, more risk when handling.

‍

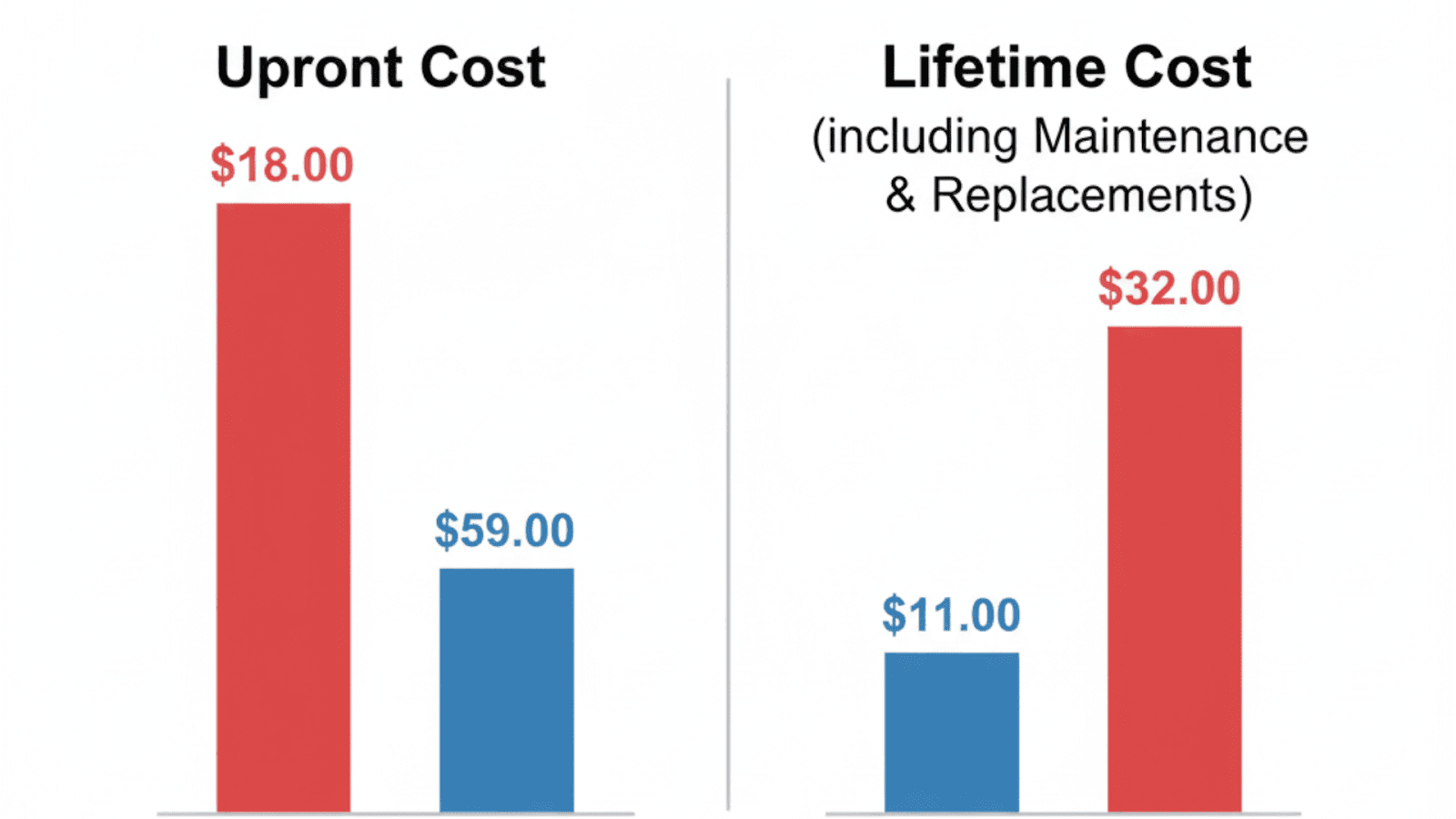

5. Cost – Upfront & Life Cycle

‍

‍

• Acrylic Underwater Windows: Acquiring and fabricating acrylic is more expensive per square meter especially for small windows. Fabrication (curving, bonding, polishing) is more labor and skill-intensive. However, over time acrylic often wins in value due to lower repair of major failures, potential to polish scratches, lighter installation, less structural reinforcement.

‍

• ‍Glass Underwater Windows: Glass is typically cheaper for small/simple windows. Lower cost materials (in standard thicknesses) are well known. But for thick, large, custom-shaped windows costs grow quickly. Also, maintenance of seals, risk of replacement if cracks, or failure adds hidden costs.

‍

6. Durability, Maintenance & Wear

‍

‍

• Acrylic Underwater Windows: Acrylic is softer, so more prone to scratching from cleaning, abrasion, and chemical exposure. Scratches on acrylic can often be polished out. Acrylic can also bow slightly under continuous load (depending on thickness). UV exposure may cause yellowing in inferior grades, though high-quality UV-stabilized acrylic resists this for decades. Seals and chemical resistance vary.

‍

• Glass Underwater Windows: Glass is extremely scratch-resistant, stable under UV, resistant to many chemicals. However, glass can crack or shatter under impact or stress. Laminated/sealed joints may degrade; the sealants used in glass frames can fail. Glass windows are less forgiving when something goes wrong.

‍

7. Design Flexibility & Aesthetics

‍

‍

• Acrylic Underwater Windows: Acrylic allows large dimensions, curved or tunnel shapes, seamless joints (via chemical bonding), custom forms. Offers more creativity in underwater windows: panoramic curves, thick deep-sea panel looks, etc.

‍

• ‍Glass Underwater Windows: Glass is more limited. Flat panels are standard; curved glass is possible but expensive, with size limitations. Joints/seams visible. Design constraints are more rigid.

‍

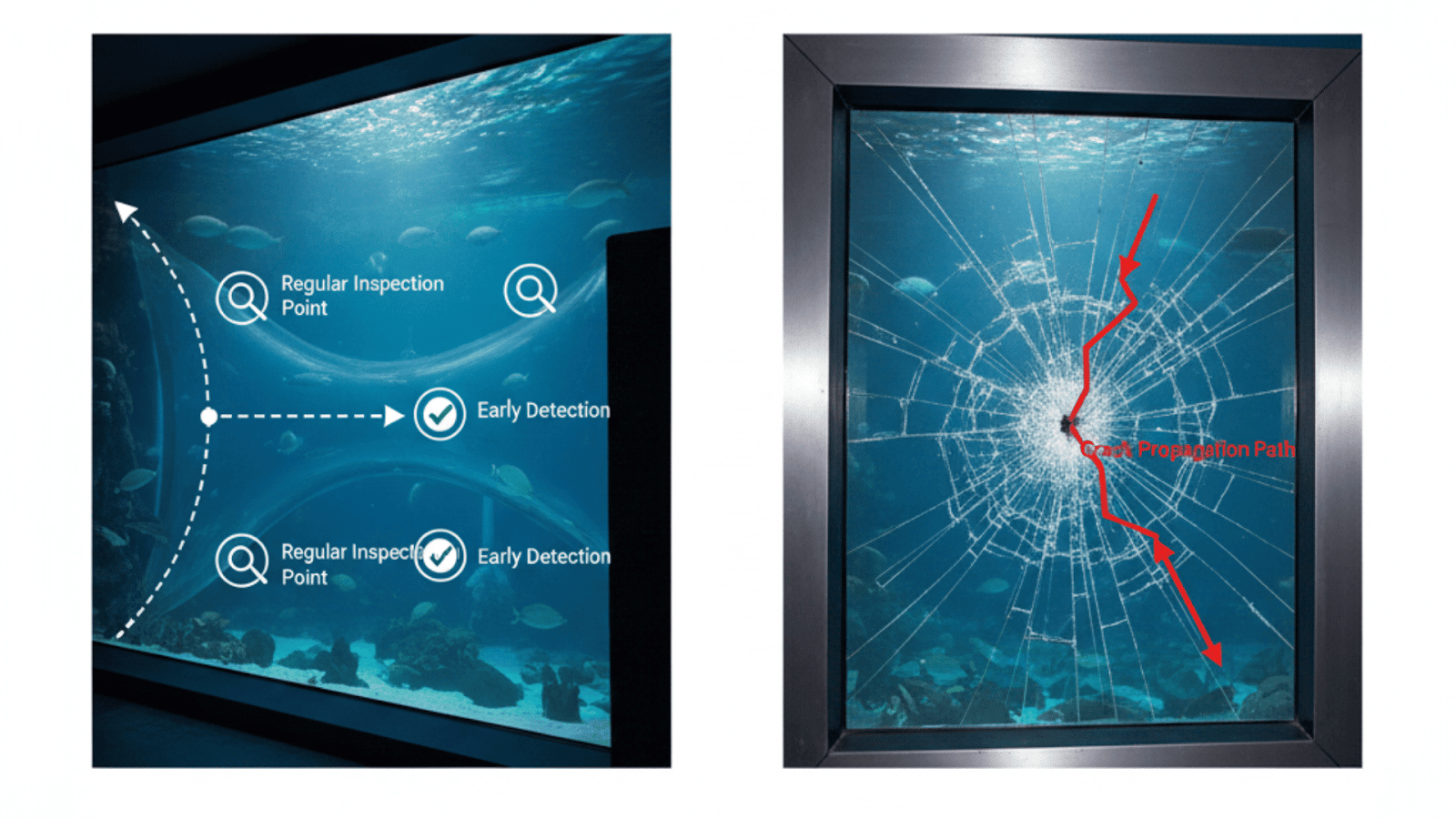

8. Safety / Failure Modes

‍

‍

• Acrylic Underwater Windows: Acrylic usually fails gradually (flexing, small cracks, surface abrasion) rather than catastrophic shattering. Safer under conditions such as impact, seismic movement, uneven load. For underwater windows, you want material that gives warning or can be inspected and maintained.

‍

• Glass Underwater Windows: Glass failure tends to be more sudden. Although laminated or safety glass reduces risk, a crack under load or pressure can propagate rapidly, risking leak or worse. Also heavy shards when glass breaks.

‍

9. Thermal Properties & Insulation

‍

• Acrylic Underwater Windows: Acrylic has poorer thermal conductivity (better insulating) than many types of glass or multi-layer laminated glass. Under heated pools or environments, acrylic will help retain heat better and reduce thermal loss.

‍

• Glass Underwater Windows: Glass allows more heat transfer. If pool water or tank is heated, glass windows may lose more heat through the panel; insulation of supporting structure matters.

‍

10. Applications & Best Fit Scenarios

‍

• Acrylic Underwater Windows: Best for large underwater windows, deep tanks or deep pool walls, curved or panoramic designs, installations where safety / impact / public viewing are critical, or where weight is a constraint. Also when you want better clarity over time.

‍

• Glass Underwater Windows: Best for smaller windows, where cost is tight, where design is simpler, for flat wall underwater windows with modest depth, or where scratch resistance is more valued than impact resistance. Also good when clients want the crisp “glass look” and are okay with thicker panels and heavier framing.

‍

Real-World Examples & Lessons Learned

‍

‍

Drawing from my 30+ years:

‍

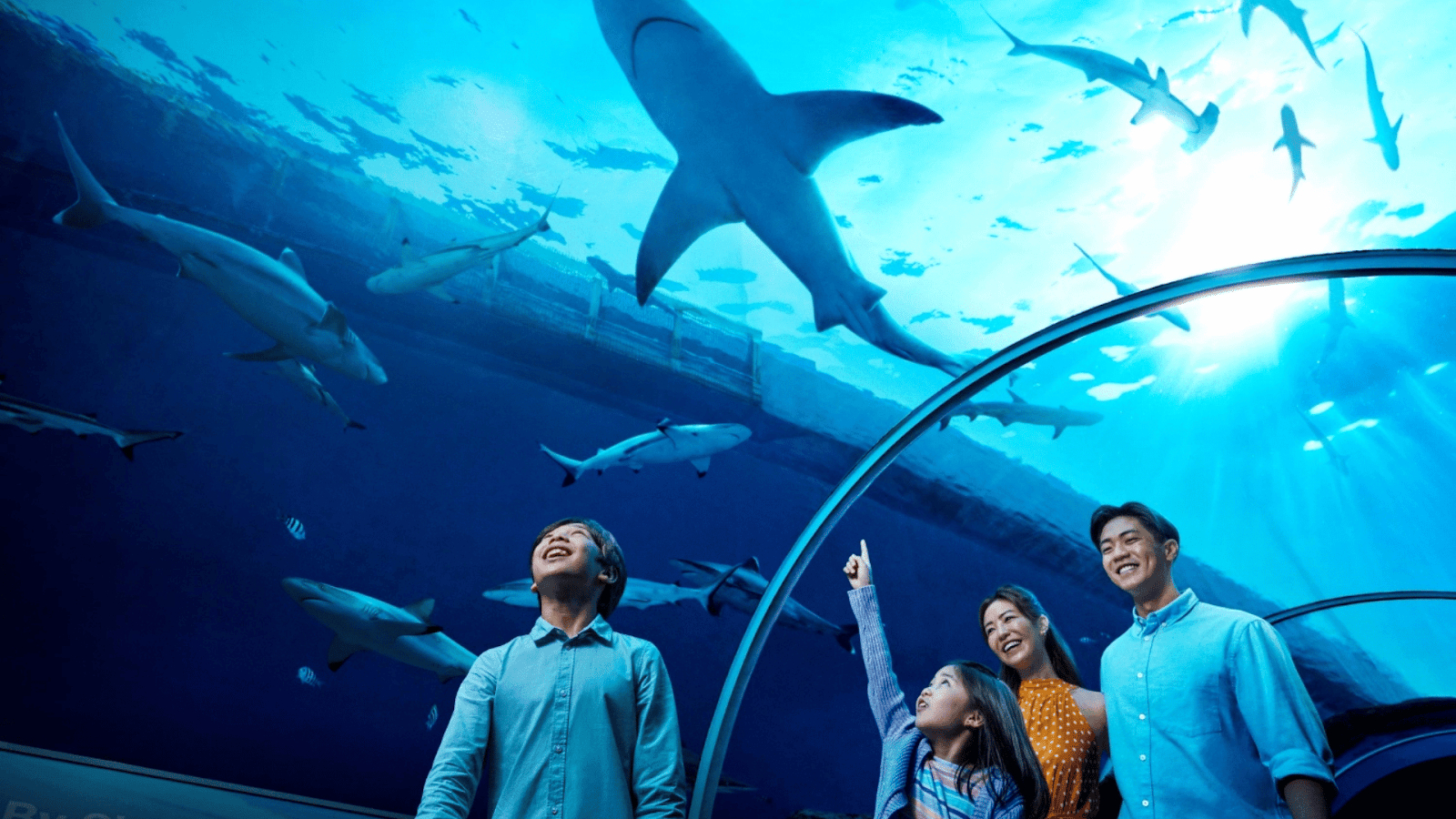

• Case Study: 12-meter Acrylic Tunnel, Public Aquarium
  We built a curved acrylic tunnel for a marine center. The client initially asked for glass to “feel more premium.” Once we modeled water pressure, bending stress, and support structure constraints, the glass option required enormous panel thickness, massive steel framing, and would’ve cost 150–200 % more just in structure. Acrylic allowed a lighter frame, better clarity with curves, and saved a lot of labor cost.

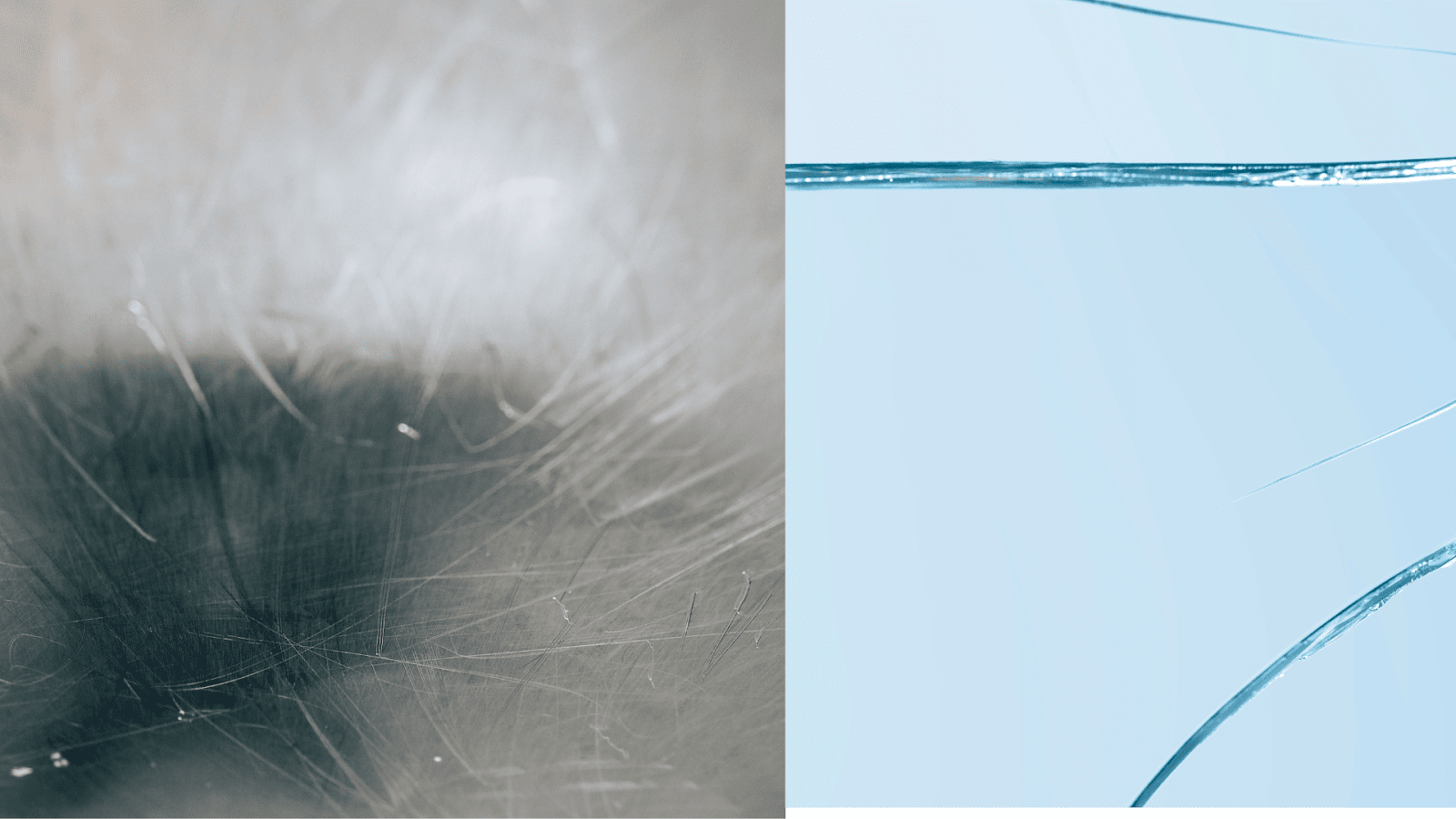

• Lesson: Scratches vs Cracks
  In a private pool with glass underwater windows, kids dropped heavy pool toys; glass cracked along a seal. That meant not just replacing glass but shutting pool for weeks. In a similar pool with acrylic, minor scratches from brushes were polished out yearly, maintaining aesthetic integrity.


• Lesson: UV & Yellowing
  Using lower-grade acrylic (without proper UV stabilizer) in a tropical pool exposed to sun led to slight yellowing over 10 years. High-quality stabilized acrylic shows almost no discoloration over 20+ years. Glass obviously resists UV well, but thick glass tints can drift.

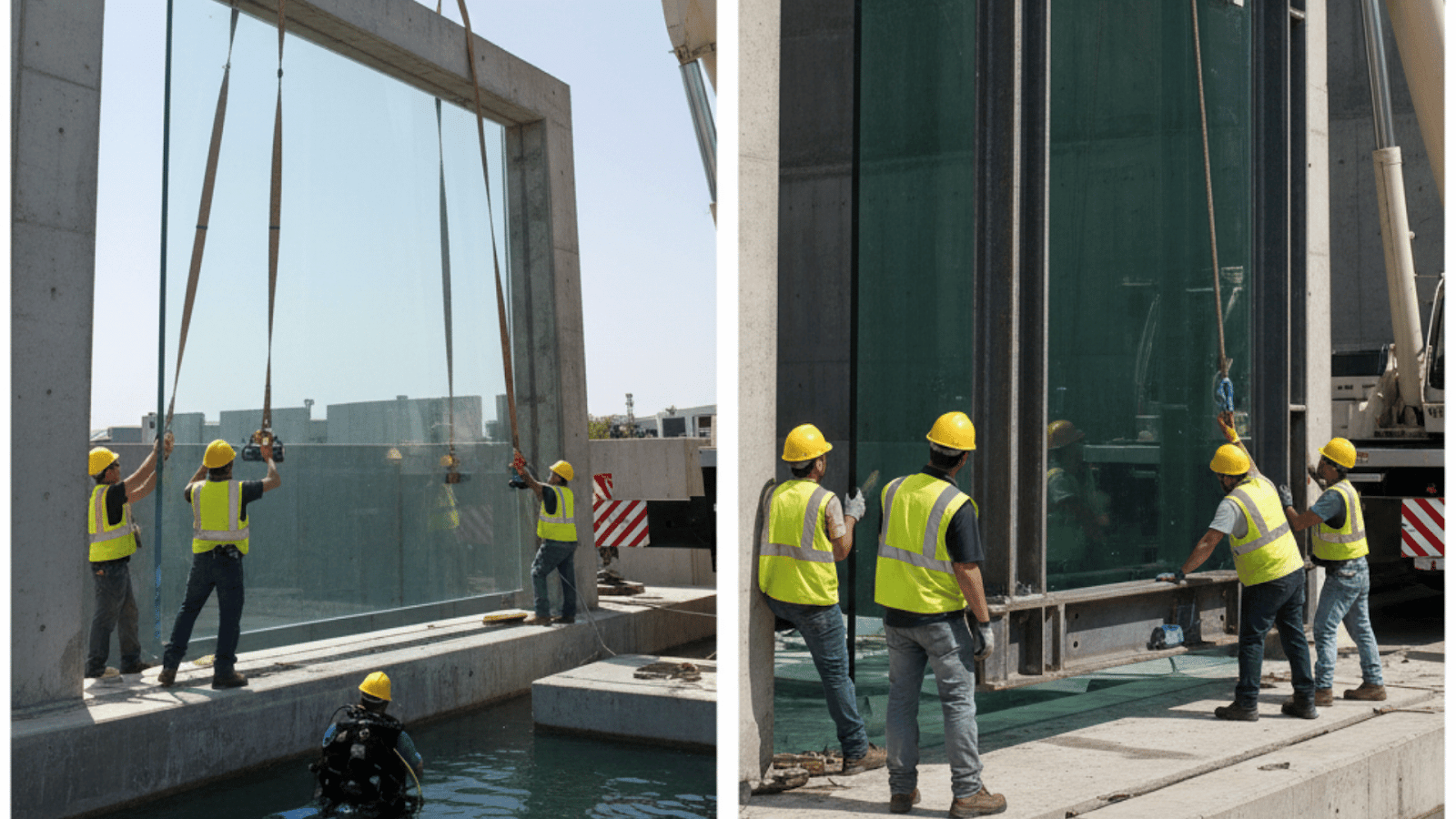

• Installation Risks
  Handling very large glass panels is risky: logistical challenges, weight, breakage in transit. Acrylic is more forgiving in manufacturing (can be produced in large blocks or panels, bonded), transported more safely, and easier to install for large spans.

‍

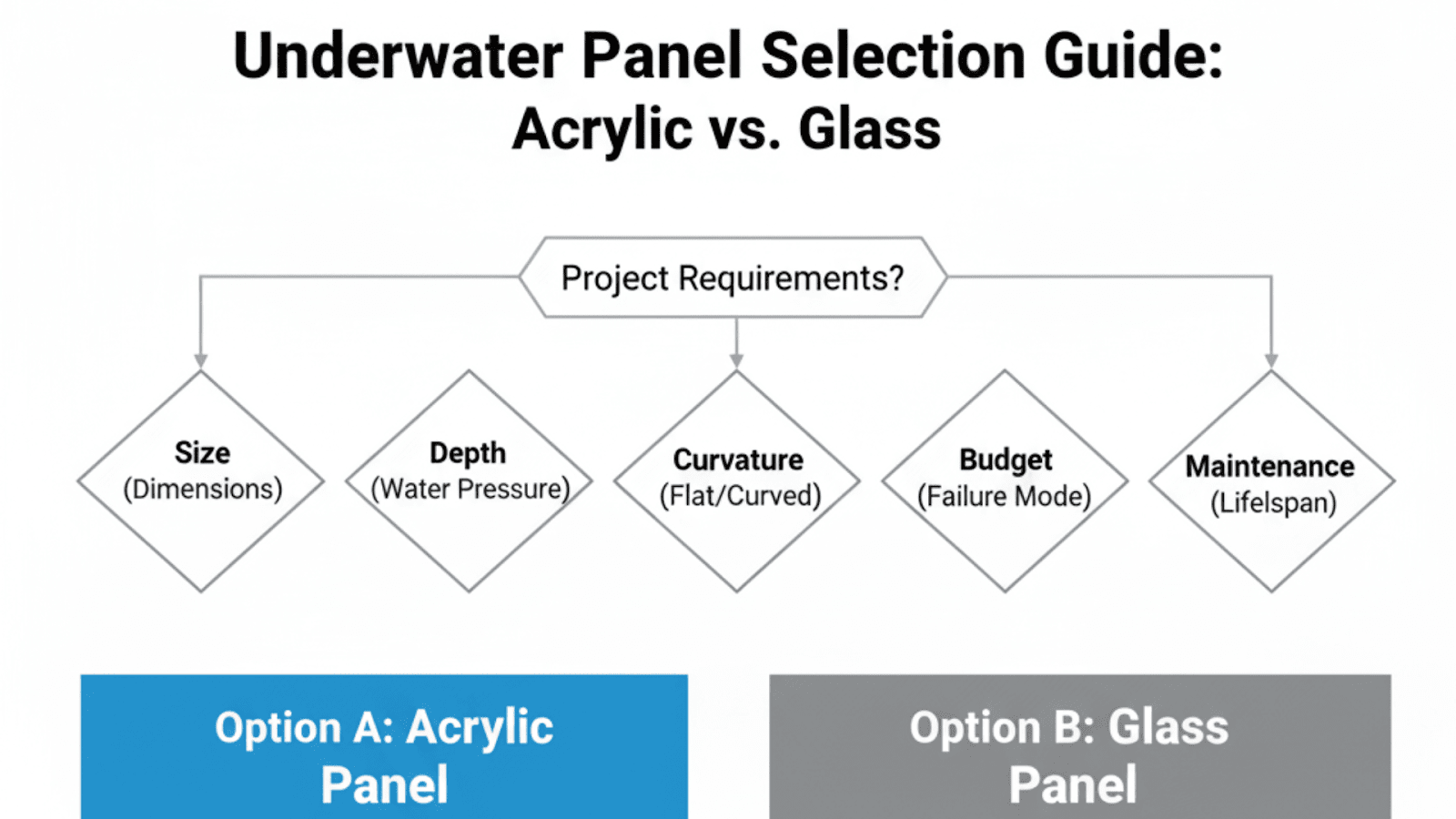

So, Which One Should You Choose?

‍

‍

Based on all these factors, here’s a guideline to help decide:

‍

• If your underwater window is large, deep, curved, or high-traffic public display, lean toward acrylic. The safety, clarity, and design flexibility are strong arguments.


• If you have a smaller window, budget is constrained, and aesthetics can accept a flat panel with possibly thicker glass, glass can still be viable.


• If maintenance is a concern (scratches, chemical exposure, ease of repair), acrylic may require more careful cleaning and occasional polishing, but minor issues easier to fix.


• If you need thermal insulation (heated pool, stable temperature for marine life), acrylic helps reduce heat loss through the window panel.


• If safety or code/regulation requires safety glass or standards, in some jurisdictions glasses (laminated, tempered) may be required, or there may be laws governing glazing strength. Ensure whichever material meets local code under hydrostatic load, impact, seismic etc.

‍

Comparison: Quick Summary (Acrylic vs Glass Underwater Windows)

‍

• Material Composition

        - Acrylic is cast or extruded polymethyl methacrylate (PMMA), often thick panels with UV-treated options.

        - Glass includes tempered, laminated, low-iron, or ultra-clear safety glass, layered for strength but naturally brittle.

‍

• Strength under Water Pressure and Impact Resistance

        - Acrylic is highly impact resistant, flexing rather than fracturing, up to 10-17 times stronger by weight than glass.

        - Glass handles compressive load well but is brittle under bending and impact, requiring thicker panels and stronger framing to avoid cracking.

‍

• Optical Clarity, Light Transmission, and Distortion

        - Acrylic typically has 88-92% visible light transmission with minimal green tint, less distortion especially in curved or thick panels.

        - Glass clarity is good in thin low-iron panels but develops tint, color shift, and distortion with increased thickness needed for strength.

‍

• Weight and Structural Support

        - Acrylic is roughly half the weight of glass by volume, easing installation, transport, and dramatically reducing framing and structural support needs.

        - Glass is heavier, requiring heavier framing, anchors, and more complex installation logistics.

‍

• Cost: Upfront and Life Cycle

        - Acrylic panels and fabrication cost more upfront due to skilled labor (curving, bonding, polishing) but offer better long-term value through easier repair and lower structural costs.

        - Glass costs less initially for small, simple flat panels but can incur high replacement and maintenance costs over time.

‍

• Durability and Maintenance

        - Acrylic is softer, more prone to scratching, which can be polished out. High-quality UV-stabilized acrylic minimizes yellowing over decades.

        - Glass is scratch-resistant and UV stable but at risk of sudden catastrophic failure due to brittleness.

‍

• Design Flexibility and Aesthetics

        - Acrylic allows large, curved, tunnel, or panoramic shapes and seamless chemical bonding for aesthetics and structural integrity.

        - Glass is limited to flat or expensive bent panels with visible seams, restricting design flexibility.

‍

• Safety and Failure Modes

        - Acrylic fails gradually with visible cracks and flexing, making it safer and easier to inspect and maintain.

        - Glass breaks suddenly and can shatter into hazardous shards; laminated safety glass reduces but does not eliminate this risk.

‍

• Thermal Properties and Insulation

        - Acrylic insulates better, helping to retain heat in heated pools and controlled aquatic environments.

        - Glass transmits more heat, potentially increasing heat loss through the window and supporting structure.

‍

• Best Applications

        - Acrylic is ideal for large, deep, curved, or high-traffic public underwater windows prioritizing safety and clarity.

        - Glass suits smaller, budget-conscious, flat-panel installations, or where scratch resistance is more important than impact resistance.

‍

Final Thoughts

‍

In the comparison of acrylic vs glass for underwater windows, there’s no blanket “best”. What’s best depends on your priorities (cost, size, aesthetic, safety, maintenance). From my 30+ years’ experience:

‍

• Acrylic often wins when it matters most, for big views, public installations, safety, curved forms, deep water.


• Glass still has its place, for small to moderate flat panels, constrained budgets, or when scratch resistance is highly prioritized.



If you’re designing a pool, aquarium, or observation under-water window, plan material choice from the beginning. Don’t force glass into a design suited for acrylic, or vice versa. The framing, sealants, safety margins, and engineering must follow your material’s behavior under underwater loads.

‍

Expert Underwater Window Installation

‍

If you’re considering getting an underwater window installed, whether acrylic or glass, here’s what to look for (and a soft offer):

‍

• Work with designers/engineers who can do hydrostatic load analyses, finite element modeling (for large spans or curved panels).


• Ensure sealants, framing materials, sub-structure are compatible with the underwater environment (corrosion resistant, chemically stable).


• Choose high-quality acrylic or high-clarity, safety/laminated glass, and check UV resistance, bonding quality (for acrylic), lamination/safety interlayer quality (for glass).


• Plan for maintenance: how you’ll clean, how to handle scratches, how to inspect for small cracks or seal deterioration.



You request a free quote from my team at Hammerhead pools or an underwater window (acrylic/glass) tailored to your pool or aquarium project.

‍

And if you have any questions or opinions on what I just explained in the article, leave a comment. I will reply based on my experience.

Cheers!

‍

FAQs

‍

1. How thick does acrylic need to be versus glass for the same window span in an underwater setting?

‍

It depends on depth (water pressure), span (width/height), shape (flat vs curved), whether edges are supported. In many aquarium or pool applications, an acrylic panel might need much less incremental thickness than glass to resist the same pressure/deflection.

‍

For example, a 1-meter wide flat underwater viewing window at ~2 meters depth may require perhaps 50-60 mm thick acrylic vs 100-120 mm thick laminated safety glass with strong framing, depending on safety factors. Always rely on structural engineering (many of our projects run finite element models) rather than rule of thumb alone.

‍

2. Do acrylic underwater windows yellow or degrade in clarity over time?

‍

If you use good-grade acrylic with UV stabilizers, proper polishing, and protect from harsh chemicals, yellowing is minimal even after 20+ years. Lower-grade acrylic or acrylic exposed to certain sunscreens, chemical cleaners, or abrasive scrubbing may yellow or haze. Regular maintenance (cleaning, sometimes polishing) helps preserve clarity.

‍

Glass doesn’t yellow, but thick glass or poor lamination or aging interlayers might develop cloudiness or visual distortion.

‍

3. Can glass underwater windows be made curved like acrylic?

‍

Yes, but doing so is expensive and limited. Curved glass must be thick, precisely manufactured, sometimes heat-bent or laminated, and then adequately supported. There are size limits (both in radius and width) beyond which curved glass becomes impractical or cost-prohibitive.

‍

Acrylic’s ability to be cast or bent or bonded gives it a big edge in curved or panoramic underwater windows.

‍

4. What maintenance differences should a homeowner or facility expect for acrylic vs glass windows underwater?

‍

For acrylic:

‍

• Use non-abrasive cleaning materials (soft cloths, rather than rough brushes).


• Clean regularly to prevent mineral deposit buildup.


• Inspect for small scratches; buff/polish when necessary.


• Check seals and frames for corrosion or movement.



For glass:

• Clean more aggressively, but still avoid harsh acids that might attack edge seals or laminates.


• Check laminated glass interlayers or safety glass seal integrity.


• If cracks appear—even hairline—replace glass as soon as possible (since propagation under load is dangerous).



5. Is there ever a scenario where glass is clearly the better choice for an underwater window?

‍

Yes. Some scenarios:

‍

• If the window is small, flat, at shallow depth, and the budget is tight. In this case, glass gives very good clarity, strong scratch resistance, and relatively lower upfront cost.


• If the aesthetic demands (client preference) are strongly toward crystal-clear, non-plastic look, and they are okay with heavier structure, thicker panels, and risk.


• If local building codes or regulations require tempered/laminated glass for safety, or if inspection regimes prefer glass.


• If the chemical environment is aggressive (pool chemicals, salt, etc.), and you’re worried about acrylic’s chemical susceptibilities (though good manufacturing helps mitigate this).
